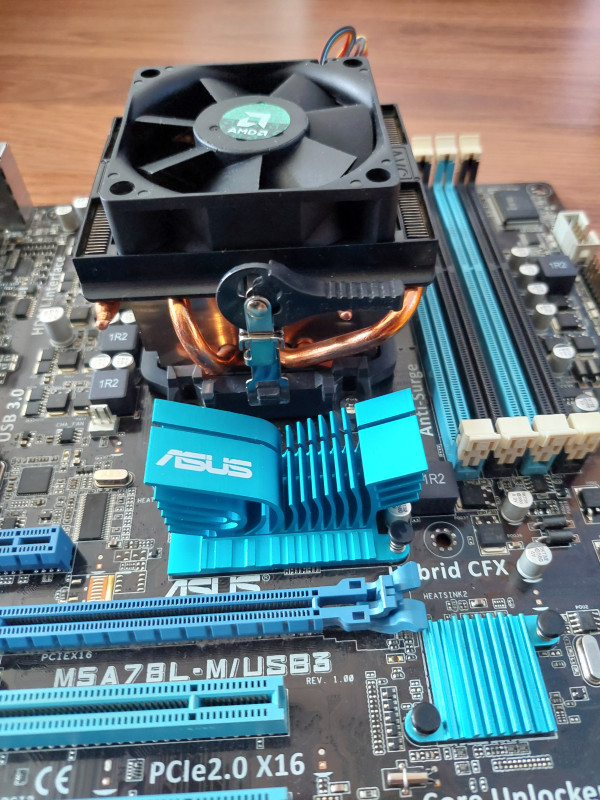

ASUS M5A78L-M/USB3 Featuring AMD 760 Chipset

Manufacturer Asus Model M5A78L-M/USB3 Socket Type & Form AM3+ / Micro-ATX Chipset AMD 760G SATA Ports 6 x 3Gb/s USB Ports 2 x USB3 & 4 x USB2 Graphics Connectors 1xDVI, 1xHDMI, 1xD-Sub RAM Slots 4 x DIMM, MAX 32GB DDR3

AM3+ based Motherboard with EPU power optimization.

• AM3+ CPU Support Ready
• Turbo Key- Touch-n-Boost！
• ASUS EPU- System Level Energy Saving
• Anti-Surge-Full-time Power Guardian-Make System Free From Risk
• Core Unlocker-Unleash True Core Performance Intelligently
• ALL solid capacitor - 100% All High-quality Conductive Polymer Capacitors

• CPUAMD AM3+ FX™/Phenom™ II/Athlon™ II/Sempron™ 100 Series Processors
• Supports CPU up to 140 W
• AMD Cool 'n' Quiet™ Technology
• * Refer to www.asus.com for CPU support list
• ChipsetAMD 760G (780L)/SB710
• Memory4 x DIMM, Max. 32GB, DDR3 2000(O.C.)/1866(O.C.)/1800(O.C.)/1600(O.C.)/1333/1066 MHz ECC, Non-ECC, Un-buffered Memory
• Dual Channel Memory Architecture
• * Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
• * Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows® OS when you want to install 4GB or more memory on the motherboard.
• * AMD FX Series CPU on this motherboard supports up to DDR3 1866MHz as its standard memory frequency.
• * AMD AM3 100 and 200 series CPU support up to DDR3 1066MHz.
• System BusUp to 5.2 GT/s HyperTransport™ 3
• GraphicIntegrated ATI Radeon™ HD 3000 GPU
• Multi-VGA output support : HDMI/DVI/RGB ports *1
• - Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz
• - Supports DVI with max. resolution 2560 x 1600 @ 60 Hz
• - Supports RGB with max. resolution 2560 x 1440 @ 75 Hz
• Maximum shared memory of 1024 MB
• Hybrid CrossFireX™ Support
• Expansion Slots1 x PCIe x16
• 1 x PCIe x1
• 2 x PCI
• StorageBuilt-in Controller :
• 6 x SATA 3Gb/s port(s), blue
• Support Raid 0, 1, 10, JBOD
• LANRealtek®, 1 x Gigabit LAN Controller(s)
• AudioVIA VT1708S 8-Channel High Definition Audio CODEC
• USB PortsBuilt-in Controller :
• 10 x USB 2.0 port(s) (4 at back panel, black, 6 at mid-board)
• Built-in Controller :
• 2 x USB 3.0 port(s) (2 at back panel, blue)
• Overclocking FeaturesOverclocking Protection :
• - ASUS C.P.R.(CPU Parameter Recall)
• Special FeaturesASUS EPU :
• - EPU
• Turbo Key
• Core Unlocker
• ASUS Exclusive Features :
• - Ai Charger
• - Anti-Surge
• ASUS Quiet Thermal Solution :
• - ASUS Q-Fan
• ASUS EZ DIY :
• - ASUS CrashFree BIOS 3
• - ASUS EZ Flash 2
• - ASUS MyLogo 2
• Back I/O Ports1 x PS/2 keyboard/mouse combo port(s)
• 1 x DVI
• 1 x D-Sub
• 1 x HDMI
• 1 x LAN (RJ45) port(s)
• 2 x USB 3.0
• 4 x USB 2.0
• 1 x Optical S/PDIF out
• 6 x Audio jack(s)
• Internal I/O3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
• 1 x COM port(s) connector(s)
• 6 x SATA 3Gb/s connector(s)
• 1 x CPU Fan connector(s)
• 1 x Chassis Fan connector(s)
• 1 x S/PDIF out header(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 4-pin ATX 12V Power connector(s)
• 1 x parallel port connector(s)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x System panel(s)
• AccessoriesUser's manual
• I/O Shield
• 2 x SATA 3Gb/s cable(s)
• BIOS16 Mb Flash ROM, AMI BIOS, PnP, DMI v2.0, WfM2.0, SM BIOS V2.5, ACPI V2.0a
• Support DiscDrivers
• ASUS PC Probe II
• ASUS Update
• Anti-virus software (OEM version)
• Form FactoruATX Form Factor
• 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
• Note*1: Support dual VGA output: HDMI & RGB, DVI & RGB.
• *2: Refer to www.amd.com for the Hybrid CrossFireX selected GPUs.
