Arduino Reflective line sensor Robot Smart Car

7 KM

Tehnika IoT

Arduino Reflective line sensor Robot Smart Car

Tehnika IoT

Mostar Novo Obnovljen: 09.07.2025 u 21:59 ID: 28863565 Pregledi: 514

Ovaj oglas može biti na Vašim vratima u roku od 24 sata

Detaljni opis

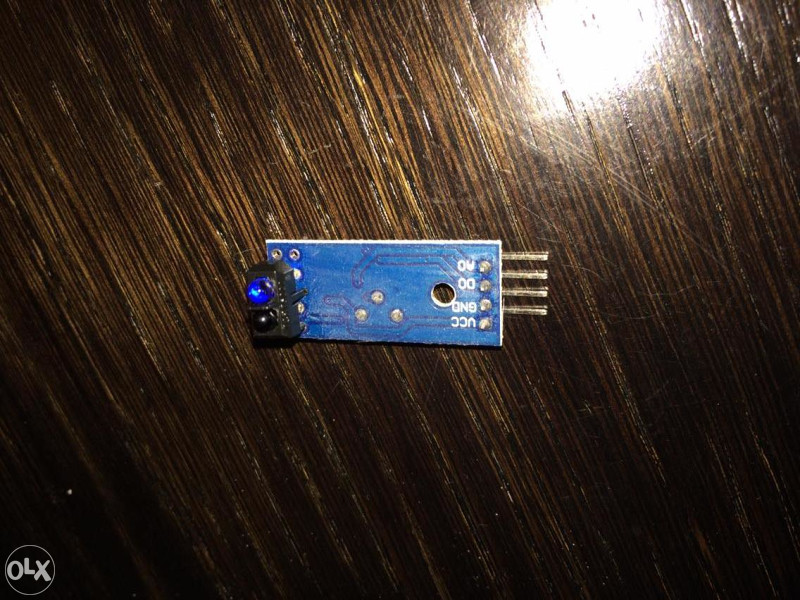

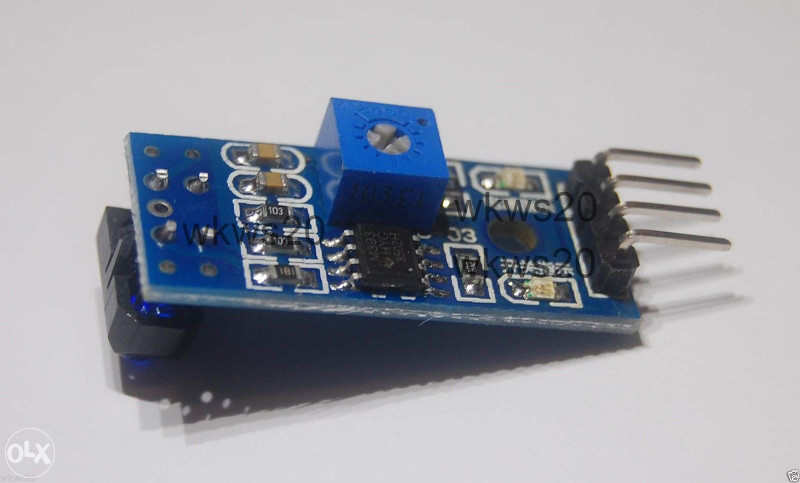

Prodajem Arduino Avoidance Reflective black & white line tracing sensor Robot Smart Car.

Description:

Smart car or robot following along a black line, also known as tracing.
For detection of reflective material, such as paper, tape, card, non contact IC card and so on.

When object is detected, the signal output is LOW,
HIGH when no object is detected

Use TCRT5000 Infrared reflective sensor.
Sensitivity can be adjust using the potentiometer
Operating Voltage 3.3-5V

Definition

Note

GND

Ground

VCC

Power，5V

Digital output

Black line or white line detection principle 1 using a black light reflectance of this feature, when the plane of the color is not black, the sensor emitted infrared light is the most reflected back. The sensor output low level 0. When the plane with a black line, black line side, the sensor in the black reflection is weak, reflected infrared light, up to the level of less than the sensor operation, the sensor also outputs 1. As long as we judge with microcontroller sensor output is 0 or 1, black lines can be detected. 4. Principle of detecting white line and black line detection principle to detect the white line, white line surrounding the color should be relatively close to the black, then adjust the infrared sensor above the adjustable resistance will reduce the sensitivity, has been transferred to just the surrounding colors undetectable until, as can be detected white line.

VIDEO DEMO

DOWNLOAD DATASHEET

Artikle saljemo na tri načina:

- BH pošta - BRZA POSTA (7,20 KM) artikle plaćate poštaru prilikom preuzimanja na adresi. Rok dostave 24h.Po želji šaljem i ostalim brzim poštama,ali su mi cijene nepoznate.

- BH pošta - plaćanje po pouzeću (6KM), pošiljka Vam stigne na poštu gdje vi to preuzimate i plaćate po pouzeću odnosno prije nego vidite artikal. Rok dostave 48h.

- BH pošta - preporučeno (besplatno za narudžbu preko 30,00KM) plaćate prvo na račun, nakon što mi uslikate uplatnicu istu posaljete viberom ili mail-om, nakon toga ja Vama šaljem artikal.Rok dostave 48h.

Robu dostavljam besplatno na području Mostara.

Ukoliko ste zainteresovani recite za koju opciju se opredijeljujete, posaljite nam adresu, grad, ime i broj telefona.

Stanje: Novo.

Na stanju više komada.

Za sva dodatna pitanja stojimo na raspolaganju,

Kontakt telefon/Viber broj: 062/753-410

Ostale artikle možete pogledati na:

StarmoTech - http://www.olx.ba/profil/StarmoTech
