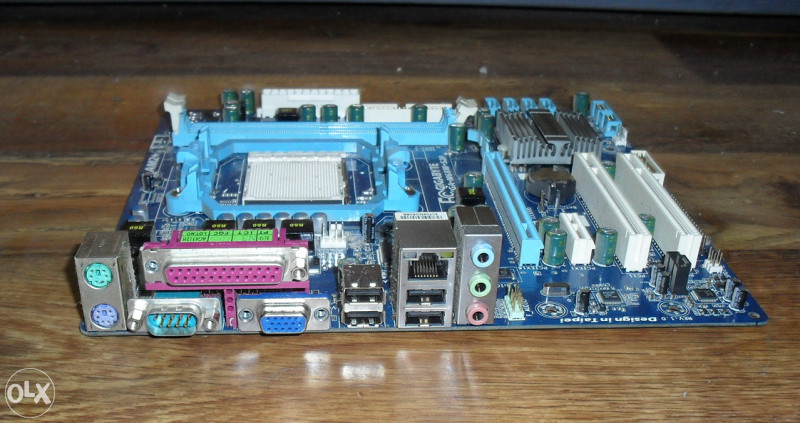

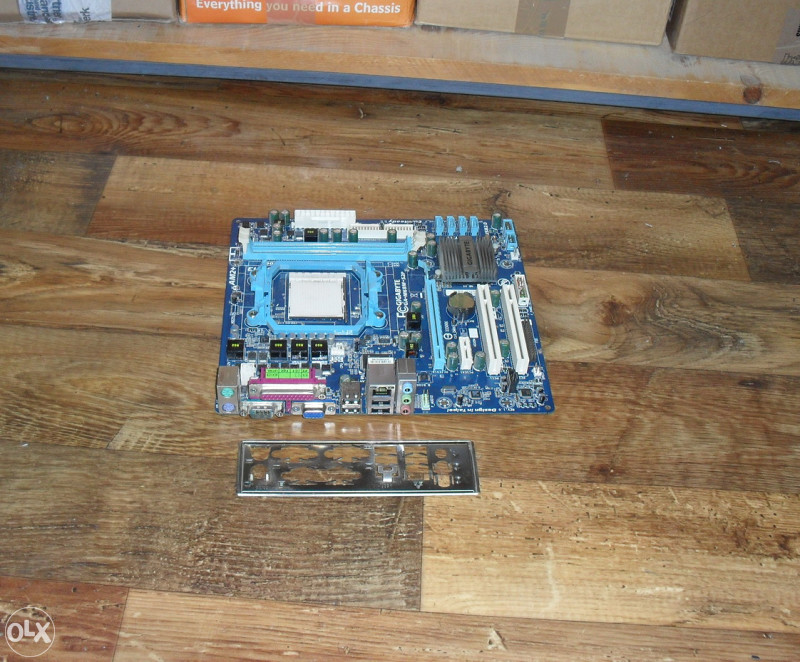

Maticna Ploca Gigabyte GA-M68M-S2P AM3

<p><span style="font-size: 12pt; color: #ff0000;"><strong>Testirana i 100% ispravna maticna ploca u perfektnom stanju!</strong></span></p> <p> </p> <p> </p> <ul> <li class="display-table-row "> <div class="display-table-cell item"><strong>CPU</strong></div> <div class="display-table-cell"> <ol> <li><strong>Support for AM3/AM2+/AM2 processors: AMD Phenom™ II processor/ AMD Phenom™ processor/AMD Athlon™ II processor/ AMD Athlon™ processor/AMD Sempron™ processor</strong></li> </ol> <strong><font color="red"> * If you install AMD AM3/ AM2+ CPU on AM2 motherboard, the system bus speed will downgrade from HT3.0 (5200MT/s) to HT1.0 (2000 MT/s) spec; however, the frequency of AM3/ AM2+ CPU will not be impacted. Please refer "CPU Support List" for more information. </font></strong></div> </li> <li class="display-table-row "> <div class="display-table-cell item"><strong>Hyper Transport Bus</strong></div> <div class="display-table-cell"> <ol> <li><strong>2000 MT/s</strong></li> </ol> </div> </li> <li class="display-table-row "> <div class="display-table-cell item"><strong>Chipset</strong></div> <div class="display-table-cell"> <ol> <li><strong>NVIDIA^® GeForce 7025/nForce 630a chipset</strong></li> </ol> </div> </li> <li class="display-table-row "> <div class="display-table-cell item"><strong>Memory</strong></div> <div class="display-table-cell"> <ol> <li><strong>2 x 1.8V DDR2 DIMM sockets supporting up to 8GB of system memory (Note 1)</strong></li> <li><strong>Dual channel memory architecture.</strong></li> <li><strong>Support for DDR2 1066/800/667/533 MHz memory modules</strong></li> </ol> <strong><font color="red"> * DDR2 1066 is supported with combination of AM3/ AM2+ processors and qualified memory modules, please refer "Memory Support List" for detail memory support information. </font></strong></div> </li> <li class="display-table-row "> <div class="display-table-cell item"><strong>Audio</strong></div> <div class="display-table-cell"> <ol> <li><strong>Realtek ALC888B codec</strong></li> <li><strong>High Definition Audio</strong></li> <li><strong>2/4/5.1/7.1-channel (Note 2)</strong></li> <li><strong>Support for S/PDIF In/Out</strong></li> <li><strong>Support for CD In</strong></li> </ol> </div> </li> <li class="display-table-row "> <div class="display-table-cell item"><strong>LAN</strong></div> <div class="display-table-cell"> <ol> <li><strong>Onboard Realtek RTL8211CL (10/100/1000Mbit)</strong></li> </ol> </div> </li> <li class="display-table-row "> <div class="display-table-cell item"><strong>Expansion Slots</strong></div> <div class="display-table-cell"> <ol> <li><strong>1 x PCI Express x16 slot, running at x16</strong></li> <li><strong>1 x PCI Express x1 slot</strong></li> <li><strong>2 x PCI slots</strong></li> </ol> </div> </li> <li class="display-table-row "> <div class="display-table-cell item"><strong>Storage Interface</strong></div> <div class="display-table-cell"><strong><strong>NVIDIA^® GeForce 7025/nForce 630a chipset<br /></strong></strong> <ol> <li>1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices</li> <li>4x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices</li> <li>Support for RAID 0, RAID 1, RAID 5, RAID 10 and JBOD</li> </ol> <strong><strong>iTE IT8718 chip:<br /></strong></strong> <ol> <li>1 x floppy disk drive connector supporting up to 1</li> <li>floppy disk drive</li> </ol> </div> </li> <li class="display-table-row "> <div class="display-table-cell item"><strong>USB</strong></div> <div class="display-table-cell"><strong><strong>Integrated in the NVIDIA^® GeForce 7025/nForce 630a chipset<br /></strong></strong> <ol> <li>Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets connected to the internal USB headers)</li> </ol> </div> </li> <li class="display-table-row "> <div class="display-table-cell item"><strong>Internal I/O Connectors</strong></div> <div class="display-table-cell"> <ol> <li><strong>1 24-pin ATX power connector</strong></li> <li><strong>1 4-pin ATX 12V power connector</strong></li> <li><strong>1 floppy connector</strong></li> <li><strong>1 IDE connectors</strong></li> <li><strong>4 SATA 3Gb/s connectors</strong></li> <li><strong>1 CPU fan connector</strong></li> <li><strong>1 system fan connector</strong></li> <li><strong>1 front panel connector</strong></li> <li><strong>1 front panel audio connector</strong></li> <li><strong>1 x surround/center audio header</strong></li> <li><strong>1 CD In connector</strong></li> <li><strong>1 SPDIF In/Out connector</strong></li> <li><strong>2 USB 2.0/1.1 connectors for additional 4 USB 2.0/1.1 ports by cables</strong></li> <li><strong>1 Chassis Intrusion connector</strong></li> <li><strong>1 Power LED connector</strong></li> </ol> </div> </li> <li class="display-table-row "> <div class="display-table-cell item"><strong>Back Panel Connectors</strong></div> <div class="display-table-cell"> <ol> <li><strong>1 PS/2 keyboard port</strong></li> <li><strong>1 PS/2 mouse port</strong></li> <li><strong>1 parallel port</strong></li> <li><strong>1 x serial port</strong></li> <li><strong>1 x D-Sub port</strong></li> <li><strong>4 USB 2.0/1.1 ports</strong></li> <li><strong>1 RJ-45 port</strong></li> <li><strong>3 audio jacks (Line In / Line Out / MIC In)</strong></li> </ol> </div> </li> <li class="display-table-row "> <div class="display-table-cell item"><strong>I/O Controller</strong></div> <div class="display-table-cell"> <ol> <li><strong>iTE IT8718 chip</strong></li> </ol> </div> </li> <li class="display-table-row "> <div class="display-table-cell item"><strong>H/W Monitoring</strong></div> <div class="display-table-cell"> <ol> <li><strong>System voltage detection</strong></li> <li><strong>CPU / System temperature detection</strong></li> <li><strong>CPU / System fan speed detection</strong></li> <li><strong>CPU / System warning temperature</strong></li> <li><strong>CPU / System fan failure warning</strong></li> <li><strong>CPU fan speed control (Note 3)</strong></li> </ol> </div> </li> <li class="display-table-row "> <div class="display-table-cell item"><strong>BIOS</strong></div> <div class="display-table-cell"> <ol> <li><strong>2 x 8 Mbit flash</strong></li> <li><strong>Use of licensed AWARD BIOS</strong></li> <li><strong>Support for DualBIOSTM</strong></li> <li><strong>PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b</strong></li> </ol> </div> </li> <li class="display-table-row "> <div class="display-table-cell item"><strong>Bundle Software</strong></div> <div class="display-table-cell"> <ol> <li><strong>Norton Internet Security (OEM version)</strong></li> </ol> </div> </li> <li class="display-table-row "> <div class="display-table-cell item"><strong>Operating System</strong></div> <div class="display-table-cell"> <ol> <li><strong>Support for Microsoft Windows Vista/XP</strong></li> </ol> </div> </li> <li class="display-table-row "> <div class="display-table-cell item"><strong>Form Factor</strong></div> <div class="display-table-cell"> <ol> <li><strong>Micro ATX form factor; 24.4cm x 22.5cm</strong></li> </ol> </div> </li> <li class="display-table-row "> <div class="display-table-cell item"><strong>Other Features</strong></div> <div class="display-table-cell"> <ol> <li><strong>Supports @BIOS</strong></li> <li><strong>Supports Q-Flash</strong></li> <li><strong>Support for Xpress BIOS Rescue</strong></li> <li><strong>Supports Download Center</strong></li> <li><strong>Supports Xpress Install</strong></li> <li><strong>Supports Xpress Recovery2</strong></li> <li><strong>Supports EasyTune(Note 4)</strong></li> </ol> </div> </li> <li class="display-table-row "> <div class="display-table-cell item"><strong>Note</strong></div> <div class="display-table-cell"><strong>(Note 1) Due to Windows Vista/XP 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.<br /> (Note 2) A 5.1/7.1 surround cable (optional) needs to be installed if you wish to enable 7.1-channel audio output.<br /> (Note 3) Whether the CPU fan speed control function is supported will depend on the CPU cooler you install.<br /> (Note 4) Available functions in EasyTune may differ by motherboard model.</strong></div> </li> <li class="display-table-row "> <div class="display-table-cell item"><strong>Remark</strong></div> <div class="display-table-cell"> <ol style="list-style-type: decimal; color: red;"> <li><strong>Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.</strong></li> <li><strong>Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.</strong></li> </ol> </div> </li> </ul> <p> </p>
