Detaljni opis
<p class="title15pt">Feature</p>
<p>
</p><div><strong>- Incredibly Quiet <br>
- Anti-Vibration Design <br>
- PWM Speed Control Function <br>
- Long Life Enter Bearing <br>
- Maximum Cooling <br>
- Easy Installation </strong><br>
<br>
</div>
<strong>

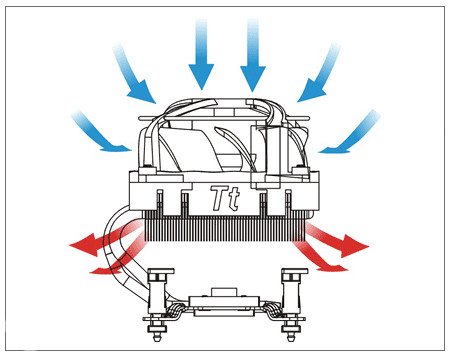

</strong>‧ Frameless fan: Differs from the traditional framed fans by
reducing the backpressure and turbulence produced by the air hitting the
side walls of traditional fans. As a result, the frameless fans are
much quieter than the traditional fans. <br>
‧ Unique fan blade design will also produce less noise due to reduced backpressure. <br>
‧ Enter bearing: The oil from the traditional sleeve bearing will
evaporate over time and allow more friction between in the bearing unit
itself, producing noise and shortening the lifetime of the fan. The
enter bearing design allows extra oil capacity to elongate the life of
the fan and reduce noise levels. <br>
‧ PWM controller: The fan supports Intel PWM FSC specifications which
allows the fan to be automatically adjusted via the motherboard BIOS.
According to the temperature of the CPU, the fan will spin at whatever
speed is necessary to reduce unnecessary noise. <br><br>
<br>
Compatibility:<div>Intel Quad-Core and CoreTM 2 Extreme (Socket LGA775)
<br>Intel CoreTM 2 Duo (Socket LGA775)
<br>Intel Pentium D (Socket LGA775)
<br>Intel Pentium 4 (Socket LGA775)
<br>Intel Celeron D (Socket LGA775)
Heatsink Dimension
115(L) x 102(W) x 103(H)mm

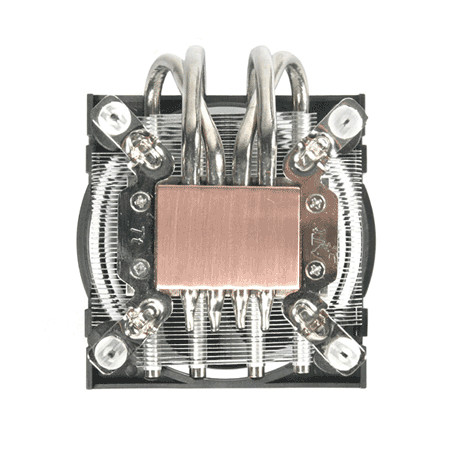

Heatsink Material
Copper Base / Aluminum Fin
Heatpipe
o6mm x 4
Fan Dimension
92(L) x 92(W) x 32(H)mm
Rated Voltage
12 V
Fan Speed
300~2500RPM(PWM)
Max. Air Flow
35.14 CFM
Noise
16 dBA
Life Expectation
50,000 Hours
Connector
4-Pin PWM function
Weight
385g<br>
</div>
