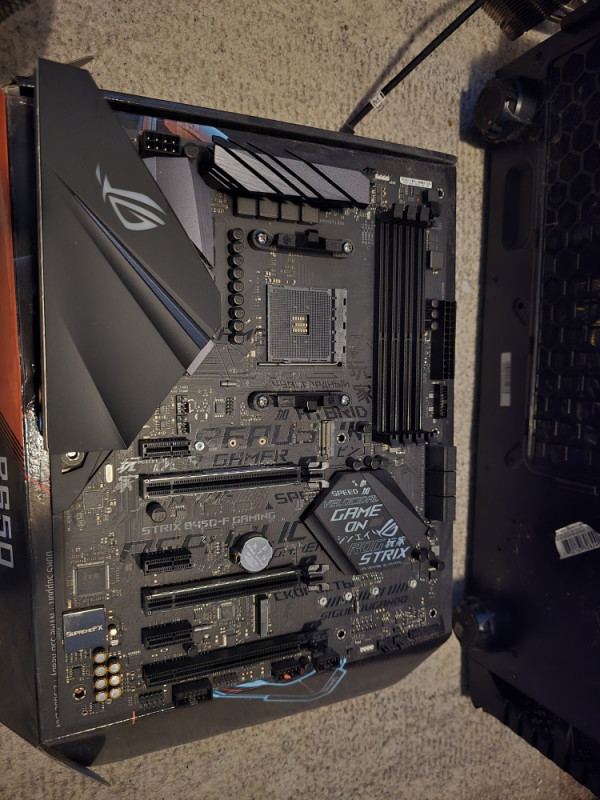

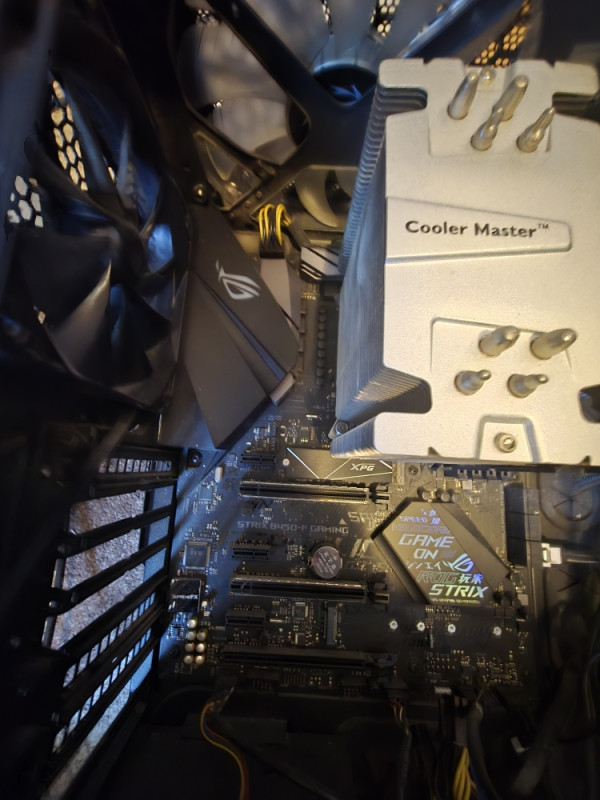

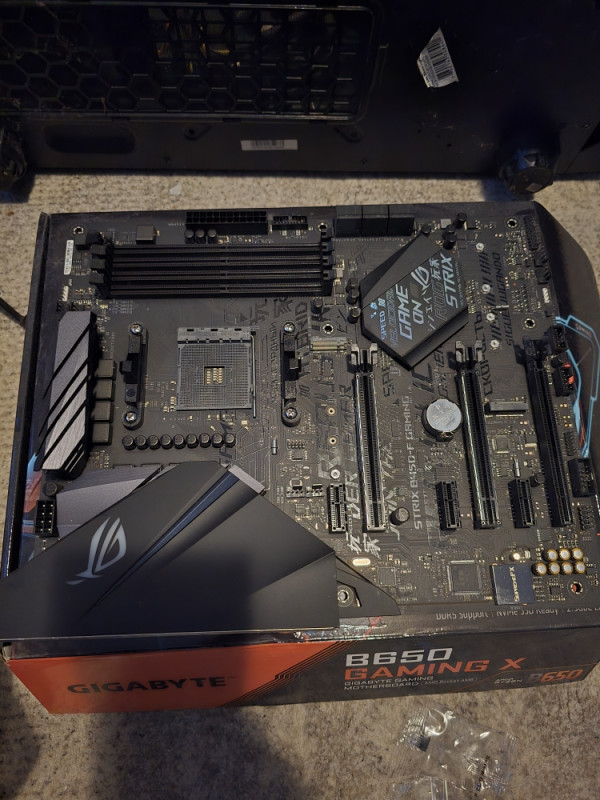

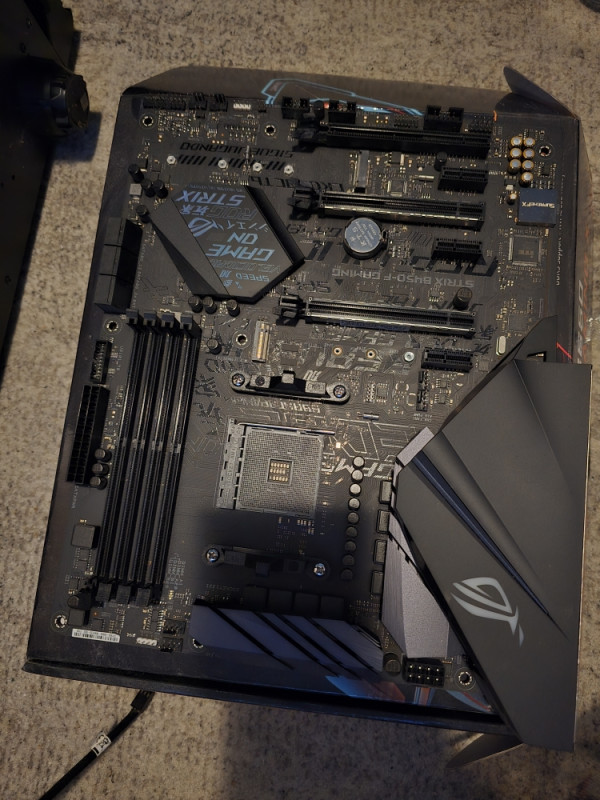

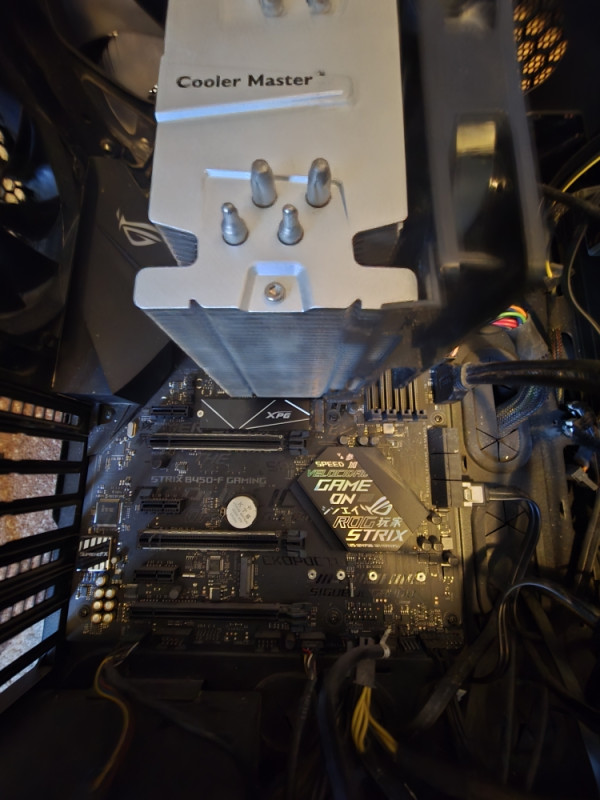

ROG STRIX B450-F Gaming

Odlicna gamerska AM4 ploca. Podrzava crosfire amd. Ispravna u odlicnom stanju. Nemam originalnu kutiju ali mogu dat od svoje ploce!

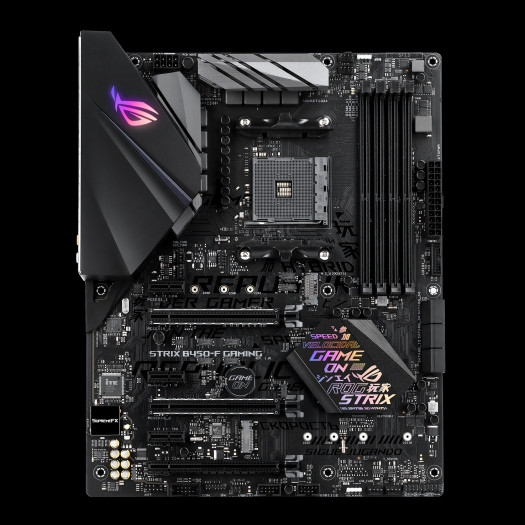

ROG STRIX B450-F GAMING

AMD AM4 B450 ATX gaming motherboard with DDR4 3200MHz support, SATA 6Gbps, HDMI 2.0, dual NVMe M.2, USB 3.1 Gen 2, and Aura Sync RGB LED lighting

AM4 socket: Ready for AMD Ryzen™ processors

Fast memory and storage: Dual-channel DDR4 4400MHz (OC) and NVM Express® RAID supported.

Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear.

Gaming connectivity: Dual M.2 and USB 3.1 Gen 2 Type-A connectors.

Gaming networking: Intel Gigabit Ethernet, plus ASUS LANGuard and GameFirst technologies.

5-Way Optimization: Automated system-wide tuning, providing overclocking and cooling profiles that are tailor-made for your rig.

Gaming audio: SupremeFX S1220A teams with Sonic Studio III to create an aural landscape that draws you deeper into the action.

Gamer’s Guardian: Pre-mounted I/O shield, ASUS SafeSlot and premium components for maximum endurance.

Awards



Silver Award

This middle range motherboard offers great performance.



Best Motherboard of 2018

The 2019 Australian PC Awards winners



TekniGaming Best Budget Award

The Asus ROG Strix B450-F Gaming is a great budget type motherboard for gamers who wants to spend more money on other components without sacrificing huge features of the motherboard, gamers will also find this board user-friendly as you can simply overclock your CPU or DRAM frequency without any problems.



Enthusiast Grade

If you've been looking with envious eyes at the 2nd Generation of AMD Zen products then the ASUS ROG Strix B450-F Gaming manages to combine the performance and feature set that we desire with great looks and all wrapped up in an affordable package

Media Reviews



Alex Real

In our assembly I took the B450-F Gaming ROG Strix series - not the cheapest, but in my opinion one of the most reliable and trouble-free.



Cyber Culture Fusion:
Fresh aesthetics to make your own



Vibrant or Stealthy:
The style choice is yours



ROG Strix B450 Gaming series provides a feature set distilled from the high-end ROG Strix X470 Gaming series that gives you all the essentials for a well-balanced build. With comprehensive cooling options, dual PCIe 3.0 M.2 slots and AMD StoreMI support for incredible storage speeds, improved DDR4 memory stability and much more, ROG Strix B450 Gaming delivers the performance you need with room to focus your budget on accompanying hardware. The motherboard also offers rich customization options with lighting synchronization as well as guided performance tuning and optimization via intuitive ROG software that makes it easy for experienced and first-time system builders alike to create a gaming system that really stands out.



Cyber Culture Fusion:
Fresh aesthetics to make your own



Vibrant or Stealthy:
The style choice is yours



ROG Strix B450 Gaming series provides a feature set distilled from the high-end ROG Strix X470 Gaming series that gives you all the essentials for a well-balanced build. With comprehensive cooling options, dual PCIe 3.0 M.2 slots and AMD StoreMI support for incredible storage speeds, improved DDR4 memory stability and much more, ROG Strix B450 Gaming delivers the performance you need with room to focus your budget on accompanying hardware. The motherboard also offers rich customization options with lighting synchronization as well as guided performance tuning and optimization via intuitive ROG software that makes it easy for experienced and first-time system builders alike to create a gaming system that really stands out.



Cyber Culture Fusion:
Fresh aesthetics to make your own

Pre-mounted I/O Shield
2 x USB 3.1 Gen 2 ports

‧ 2 x Type A

Display Port

‧ HDMI 2.0
‧ DP

Intel® I211-AT Gigabit LAN

‧ ROG GameFirst technology
‧ LANGuard

Multi-GPU CFX support
2 x PCIe 3.0 x 16

(supports x 16, x8/x4)

1 x PCIe 2.0 x 16

(at x4 mode)

3 x PCIe 2.0 x 1

SupremeFX S1220A CODEC

‧ Impedance sense
‧ High quality output and input
‧ SupremeFX shielding
‧ Dual OP amplifiers

DDR4 4400 MHz(O.C.)

‧ 4 x DIMM, dual-channel

AM4 socket for AMD 2nd/1st Generation Ryzen™ / Ryzen™ with Radeon™ Vega Graphics

6 x SATA 6Gb/s

2 x M.2 Socket 3

‧ 1 x Type 2242-2280, supports SATA & PCIe 3.0 x4 modes
‧ 1 x Type 2242-22110, supports PCIe 3.0 x4 modes

1 x Thermal sensor header

2 x AURA RGB headers

SOLID HARDWARE SPECS FOR GAMING AND MORE

With ample power to fuel Ryzen’s cores, plus cooling, storage and connectivity options for a range of hardware, the ROG Strix B450-F Gaming motherboard has everything you need to build on a budget or load up with high-performance components to game in the big leagues.



Cooling



Storage



Memory



Networking



Audio

DESIGN, CUSTOMIZATION, AND SETUP

A host of design touches, customization options, comprehensive validation lists, and the most diverse ecosystem of components in the industry make building and personalizing a gaming rig with ROG Strix B450-F Gaming wonderfully easy.



ID Design



Aura Sync



DIY Friendly Design



Certified Compatibility



ROG Strix Ecosystem

TUNE YOUR RIG THE WAY YOU WANT

The ROG Strix B450-F Gaming motherboard features firmware controls and software utilities crafted for all skill levels, making first-time setup, tuning, and system maintenance simple. With options from overclocking and cooling to managing network performance and audio characteristics, you can configure your ROG Strix gaming build to perform the way you want.



Easy-To-Use BIOS



Optimizations



Personalized Sound



GameFirst Network Control



ASUS Grid and More

THE POWER OF AMD



AMD AM4 Socket for 3rd/2nd/1st Gen AMD Ryzen™ / 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics / Athlon™ with Radeon™ Vega Graphics Processors

The AMD Ryzen™ processor is based on the innovative Zen core architecture and features up to eight cores and Radeon™ Vega integrated graphics. Together with dual-channel DDR4 memory, native 5Gbps USB 3.1 Gen 1 and 16 PCI Express® 3.0/2.0 lanes, these AMD AM4-socket processors deliver superb computing performance.



AMD B450 chipset

The AMD B450 chipset delivers high performance and flexibility with the latest AMD AM4-socket Ryzen™ processors. It also offers AMD StoreMI storage acceleration technology and provides two 10Gbps USB 3.1 Gen2 ports, two USB 3.1 Gen1 ports, and four 6Gbps SATA ports for faster data retrieval.
