Siemens HiPath 1120 V7.0 telefonska centrala

svi priključci podržavaju Caller ID (CLID, CLIP, identifkaciju dolaznog broja)

• 2 linije, 8 analognih lokala,
• moguće proširenje na 6 linija/16(20) lokala, tj. uz doplatu za:

4 (+4 Slave) digitalna (sistemska) lokala,

karticu sa 2 analogne linije + 4 lokala

ili karticu sa 2 analogne linije

ili za 2 ISDN BRA priključka

ili ADSL karticu

• besplatan tarifni softver
• besplatan hotelski softver za mali hotel
• besplatan CTI upravljački program za integraciju telefon-računar

HiPath 1120 telefonska centrala nudi veliki broj profesionalnih servisa koji su karakteristični za veće i skuplje sisteme. Sa sistemom HiPath 1120 Siemens pruža izuzetno visoke komunikacione performanse malim ali zahtevnim korisnicima. Korišćenje optiPoint 500 ili OpenStage serije digitalnih telefona (opciono) sa ovom centralom nudi maksimalnu udobnost pri radu.

PDF (engleski jezik)

LINK 1

LINK 2

Prodajem korištenu digitalnu telefonsku centralu Siemens HiPath 1120 V7.0.

Pogodna je za manju firmu, do 16/20 lokala i do 6 linija (trenutni kapacitet je 2 linije/kanala, 8 lokala). Prodaja firmi moguća je i preko ugovora, preko kojeg ova oprema ulazi kao osnovno sredstvo u firmu.

Svi lokalni tel. priključci (lokali) podržavaju identifikaciju poziva (Caller ID, CID). Ispis informacija na displeju digitalnih sistemskih tel. aparata je na našem jeziku. Uputstva za korištenje telefonskih aparata na ovom telefonskom sistemu su na našem jeziku.

Uz centralu se dobija besplatan instalaterski i tarifni softver za kontrolu troškova telefoniranje i praćenje upotrebe lokala od strane zaposlenih (dolaznih i biranih odlaznih tel. brojeva) koji se inače plaća uz većinu centrala kao posebna stavka!!! Takođe se dobija besplatan hotelski softver za manji hotel koji upravlja hotelskim funkcijama centrale.

Podržava priključenja na VoIP linije (preko VoIP adaptera), GSM Gateway-a i LCR-a (sve ovo omogućava jeftinije razgovore).

Ako ste korisnik usluge jeftinijih operatera npr. AirABA, T3 i sl. funkcija LCR omogućava da se predbroj operatera okreće automatski, tj. centrala bira automatski jeftinijeg operatera za željeni birani broj!

--------------------------------------------------------------------------------------------------------------------------------------

Opšti podaci o modelu HiPath 1120 V7.0

Osnovna konfiguracija:

• 2 analogna javna telefonska priključka sa Caller ID
• 8 analognih lokalnih priključaka (podržavaju identifikaciju poziva, Caller ID)
• kartica za govornu najavu (produženo biranje, DISA) i/ili govornu poštu
• USB i V.24 interfejs za programiranje/priključenje tarifnog softvera

 Maksimalan kapacitet HiPath 1120 V7.0 u različitim kombinacijama je:

• do 6 linija
• do 16 lokalnih priključaka (sa posebnim adapterima na digitalnim tel. aparatima 20)

Karakteristike:

• Interni telefonski imenik do 500 imena
• Prikaz imena na displeju
• Lista pozivanih brojeva
• Preuzimanje poziva (Call Pick-up)
• Parkiranje poziva
• Muzika na čekanju
• Transfer poziva (interni/eksterni)
• Konferencijski poziv (interni/eksterni)
• Konsultacijski pozivi
• Prikaz i zapis tarife
• Skraćeno biranje
• Ponovno biranje - poslednjih 10 brojeva
• Prebacivanje između poziva - Toggling
• Preusmjeravanje poziva -Call Forwarding

-----------------------------------------------------------------------------------------------------------------

 Opcioni moduli i telefonski aparati (uz doplatu):

• digitalni telefonski aparat Optipoint 500 Economy/Basic/F20/F30 -100KM
• digitalni telefonski aparat Optipoint 500 Advance/F40 -140KM
• adapter za programiranje za USB ili serijski port (sa TTL elektronikom, na slici jedan od modela adaptera) potreban za rad softvera kad nema nijedan sistemski aparat sa USB priključkom - 60KM
• optiPoint application module (kolor ekan osjetljiv na dodir) -100 do 180KM
• osnovno programiranje (samo centrala) - 40KM

Opis na engleskom jeziku:

HiPath 1100 family

HiPath 1100 is the convenient communication for small and medium-sized companies. The system family is manufactured by Siemens for the specialized reseller. It rounds up the large HiPath family for the analog end of the market.

  HiPath 1120

Overview

HiPath 1100 family is the high-performance Phone family, made up of three systems, for companies with up to 140 users. Integrated options, such as CLIP analog, make your communication even more flexible. And HiPath 1100 is an especially cost-effective communications solution, not only in terms of purchase price, but also for installation and operation. It is especially simple to install and administer with the Windows Service Tool. Applications are straightforward to connect via the integrated USB and V24 connection. And if your requirements change? No problem - with HiPath 1100 you can change up to ISDN at a later date. And HiPath 1100 phone systems always fit. HiPath 1100 - the smart phone system for demanding customers.

HiPath 1100 family in Release 7.0 makes entry into the professional OpenStage T world possible. The analog ports provide the usual services offered in this segment together with call number and name display for no extra costs with standard telephones.

HiPath 1100 family is supplied with a comprehensive software package. In addition to a setup assistant, the installation and administration tool HiPath 1100 family Manager features a graphical LCR tool. A user-friendly call charge manager and a complete software suite for internet access, fax and telephone support are also supplied.

Connectivity

Basic capacity

• Trunk 2
• Extension 8
• Slots 2

Maximum capacity

• Trunk 6
• Extension 16 (20 with master-slave mode)

Analogue System Phones (4 wires): Profiset 3030

Digital System Phones (2 wires):

• OpenStage T or optiPoint 500: 4 (master) + 4 (slave)

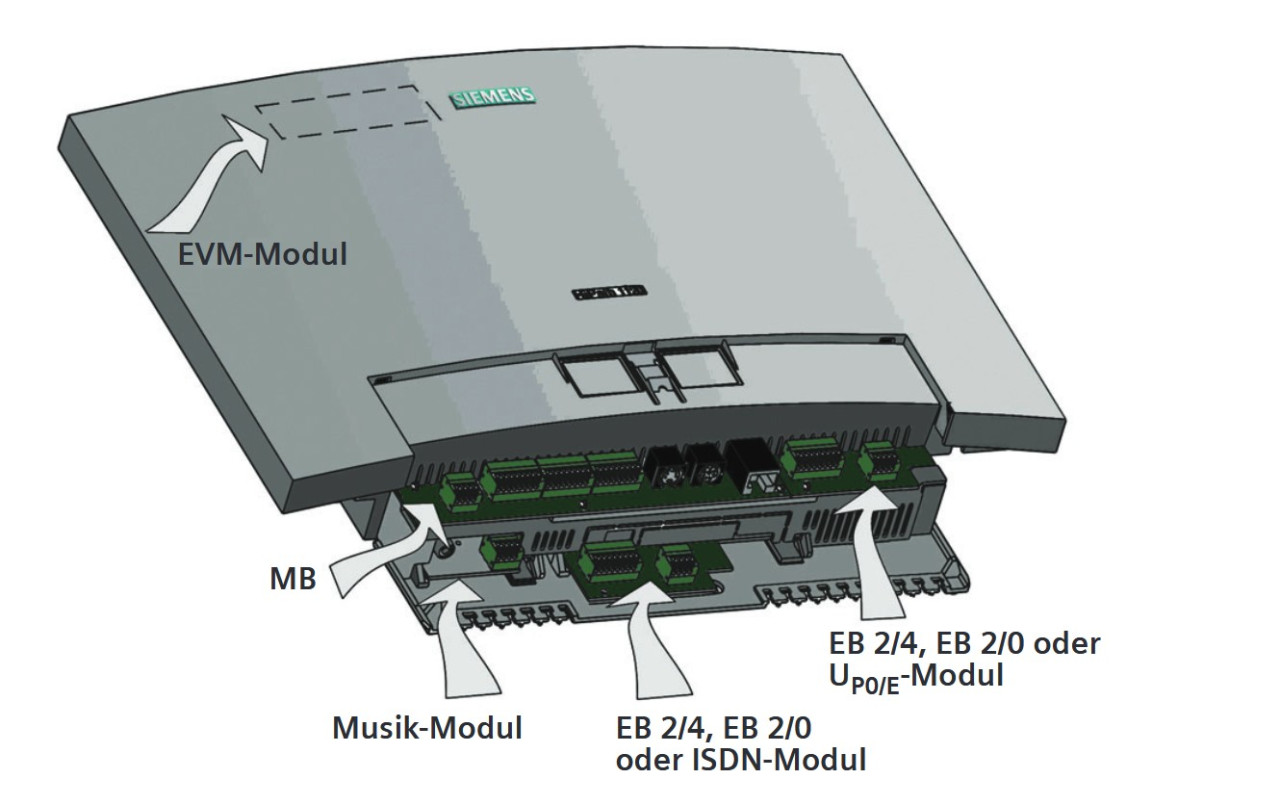

Option Boards using one Slot each

• ISDN [*] 1x #2
• ADSL 1
• UP0/E [*] 1x #4

Option Baby Boards or small Slot

• EVM 1
• MOHAS 1

Expansion Boards

• Trunk & Extensions EB204 [*]

Notice [*]: HiPath 1120 needs an EB-ribbon cable for the 1st of one of these options. UP0/E option in the HiPath 1120 needs an additional UP0/E-ribbon cable (included in the Kit)

Marketing Highlights

• Cost optimized flexible system for small enterprises
• Integrated powerful voice mail system
• extension of subscriber lines in steps (4 / 6 / 10 / 12)
• mix of low price analogue telephones and high feature digital devices
• easy to install and administration with Windows Manager Tool
• Comfortable Telephony in high Quality
• Easy to-use- devices with interactive User Interface
• Comprehensive Feature Set with TAPI / CAPI for CTI solutions
• Included SW-Package for Internet Access, Fax Communication and Cost Management
• Support of analogue devices with call cost indication, call number signaling
• Optional Enhancements
• External SIP or GSM gateways, selected by system call control
• CTI clients using TAPI software
• Sensor / Relay module for alarm and control tasks
• Door sets for convenient door ringing; -talking and -opening

Phones

Analog phones

Profiset 3000 System Phones Family

Profiset 3030 (mangan or arctic)

Digital phones and modules

Any of the optiPoint or OpenStage with Display may also be used as System Phone - Option UP0/E required.

OpenStage 15 T

OpenStage 30 T

optiPoint 500 entry

optiPoint 500 economy

optiPoint 500 basic

optiPoint 500 standard

optiPoint 500 advance

optiPoint application module

optiPoint key module

Features

• Basic voice features
• Access category for night service
• Alarm announcement
• Association of caller number with HiPath 1100 speed dial name
• Auto attendant with announcement
• Auto hands free activation and deactivation on key sets
• Automatic flash time detection
• Baby phone/paging with ext. access
• Call back - on busy and no answer
• Call barring with country default
• Caller list
• Call forwarding: internal/external (conditional)
• Call hold/park
• Call group (default 1st 10 extension)
• Call pickup: group/selective
• Call Timer for limited conversation
• CLIP info in each ext. CLIP phone
• CTI protocol via V.24/USB and Interface upgrade
• Conference
• Consultation with attendant console
• DISA Direct inward dialing
• Do not disturb
• DTMF suffix dialing
• Electronic lock
• Emergency call
• Event signaling (fax, printer)
• External dialing restriction
• External call diversion
• Extension name display
• Fax Gr. 3&4 Software and FAX/DID integrated
• Flash on trunk
• Hunt group (linear/cyclic)
• Music on hold (wave file loadable)
• MW on each CLIP device
• Night service
• Number redial
• Remote programming
• Programmable keys
• Sensor/relay features (1120 only)
• Special COS for locked Station
• Speed dial central (90 x 30 long)
• Secretarial service (associated call)
• UCD statistical software
• Wake-up call
• VMIe - extended Voice Mail Interface
• Administration features
• Administration over ISDN/ADSL/USB/V24
• Automatic In-Service of all extensions
• Automatic Remote Software Update
• Connected Phone recognition and report
• D-Channel Tracing
• MIDI file playback for Music on Hold
• Remote administration with password
• Compatible with OS Microsoft Vista and XP
• Optional with EVM module
• Integrated VoiceMail
• Automated Attendant
• up to 24 individual mailboxes
• up to 2 hours of recording capacity
• Optional with MOHAS module (1120)
• external music-on-hold (CD)
• relay for switching with acknowledge (actor)
• sensors for registration of NC/NO contact
• Optional ISDN features
• AOC Call Charge
• CCBS Call Complete to Busy Subscriber
• CFB Call Forward Busy
• CFNR Call Forward no reply
• CFU Call Forward Unconditional
• CLIP Calling Line Identity Presentation
• CLIR Calling Line Identity Restriction
• COLP Connected Line Presentation
• COLR Connected Line Restriction
• DID Direct Inward Dialing
• MSN Multiple Subscriber Numbering
• PMP Point to Multipoint
• PP Point to Point
• S0 trunk lines supporting S0 bus
• New and additional features V7.0
• Administration of extension names
• Basic ADSL Board with 4-Port Hub with SNMP functions (2 types HiPath 1120 & HiPath 1150/90)
• Basic ADSL Board with standard Efficient Modem as baby board
• Caller List for group call
• Calling party number transmission during call forward
• Common Hold
• Door call with Day and Night rules
• Door opener functionality improved
• Direct function key with LED for Call/Hunting Groups (DSS)
• GSM/SIP box support with LCR in an ISDN trunk
• 8 Party Conference (HW activated by Software)
• CDR (call charge with export function)
• Graphical LCR prog. tool (via Manager

Applications

• Small Hotel applications
• Checkin / checkout by reception phone
• PC software for room status and call charges
• CTI SW
• TAPI driver included in delivery

Documentation

Many documents in various languages are available for HiPath 1100. As there are:

• Feature  d e s c r i p t i o n s
• Datasheets
• Administration manuals
• User manuals
