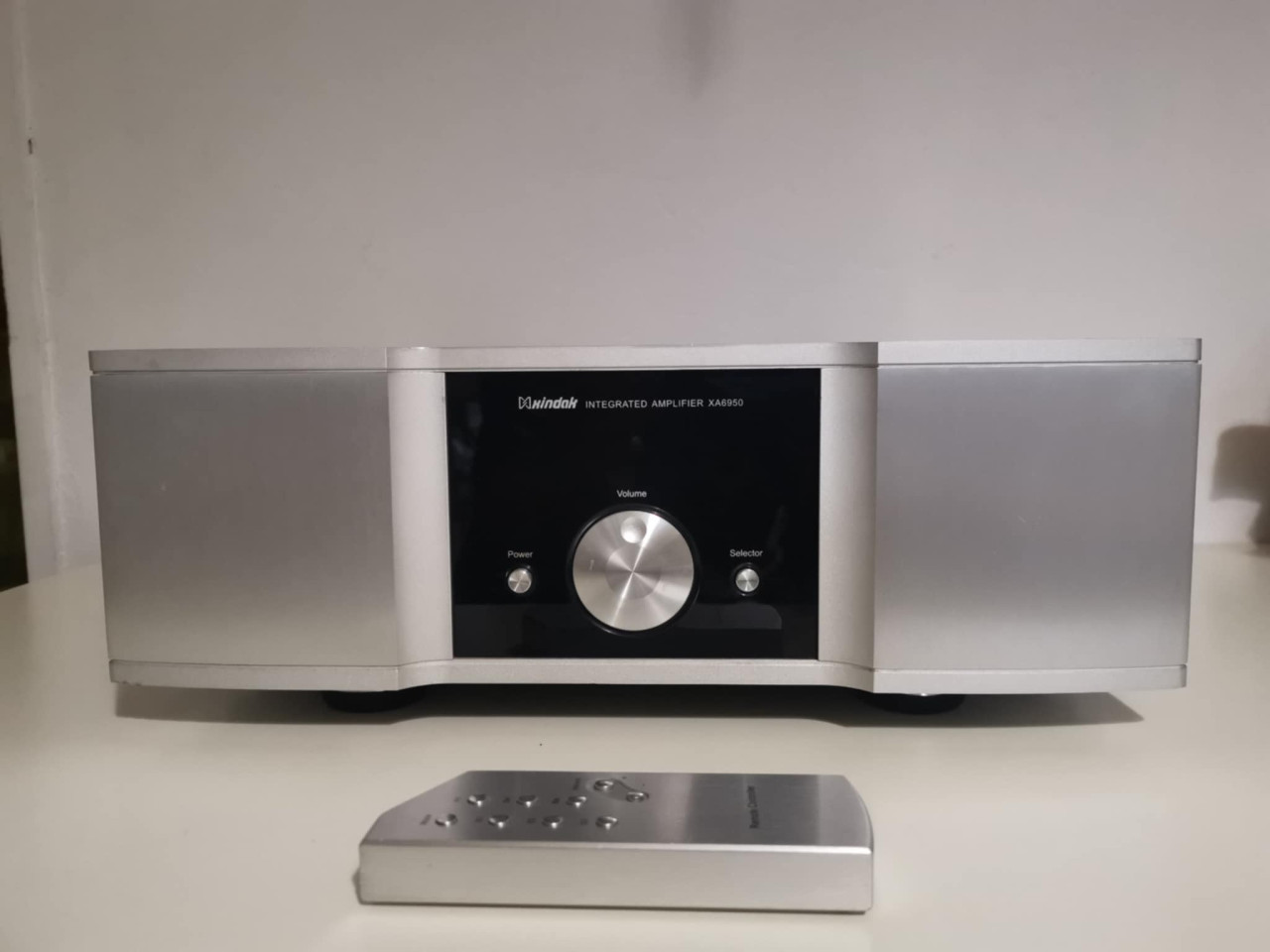

Xindak XA 6950

27kg, A klasa do 30W , A/B klasa 130W, dual mono (unutrasnjost pogledajte na zadnjoj slici sa interneta)

Stanje MINT.

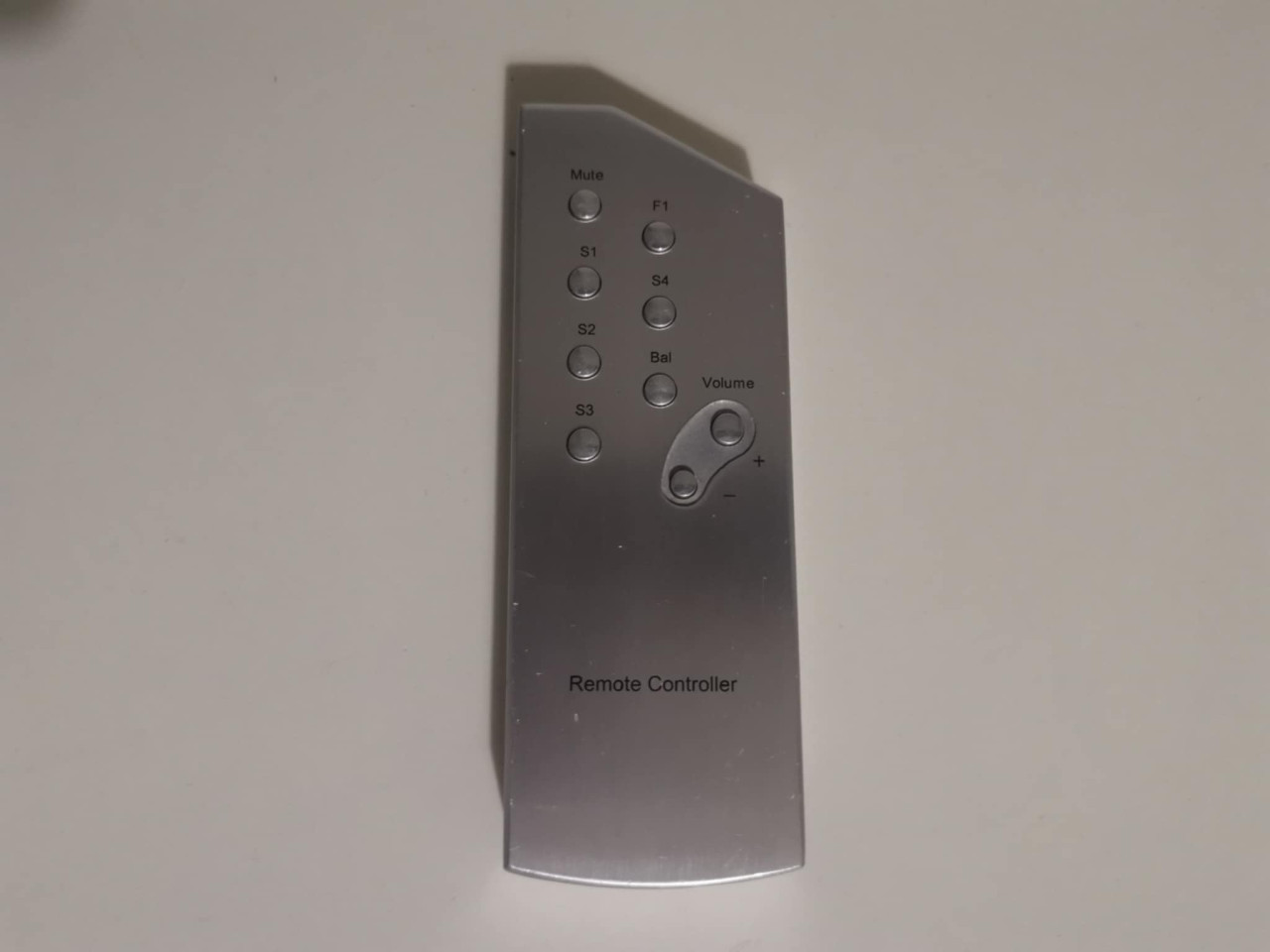

Originalni daljinac.

Power output: 130 watts per channel into 8Ω (stereo)

Frequency response: 10Hz to 100kHz

Total harmonic distortion: 0.06%

Input sensitivity: 270mV (line)

Signal to noise ratio: 95dB (line)

Dimensions: 430 x 460 x 168mm

Weight: 26.7kg

Integrated stratospheric of Chinese production, built without compromises, with a use of high thickness aluminum that I have never seen on any device. I also took the trouble to measure some thicknesses with the caliper and I challenge anyone to find a product of this cost (but also double) with this use of excellent material.

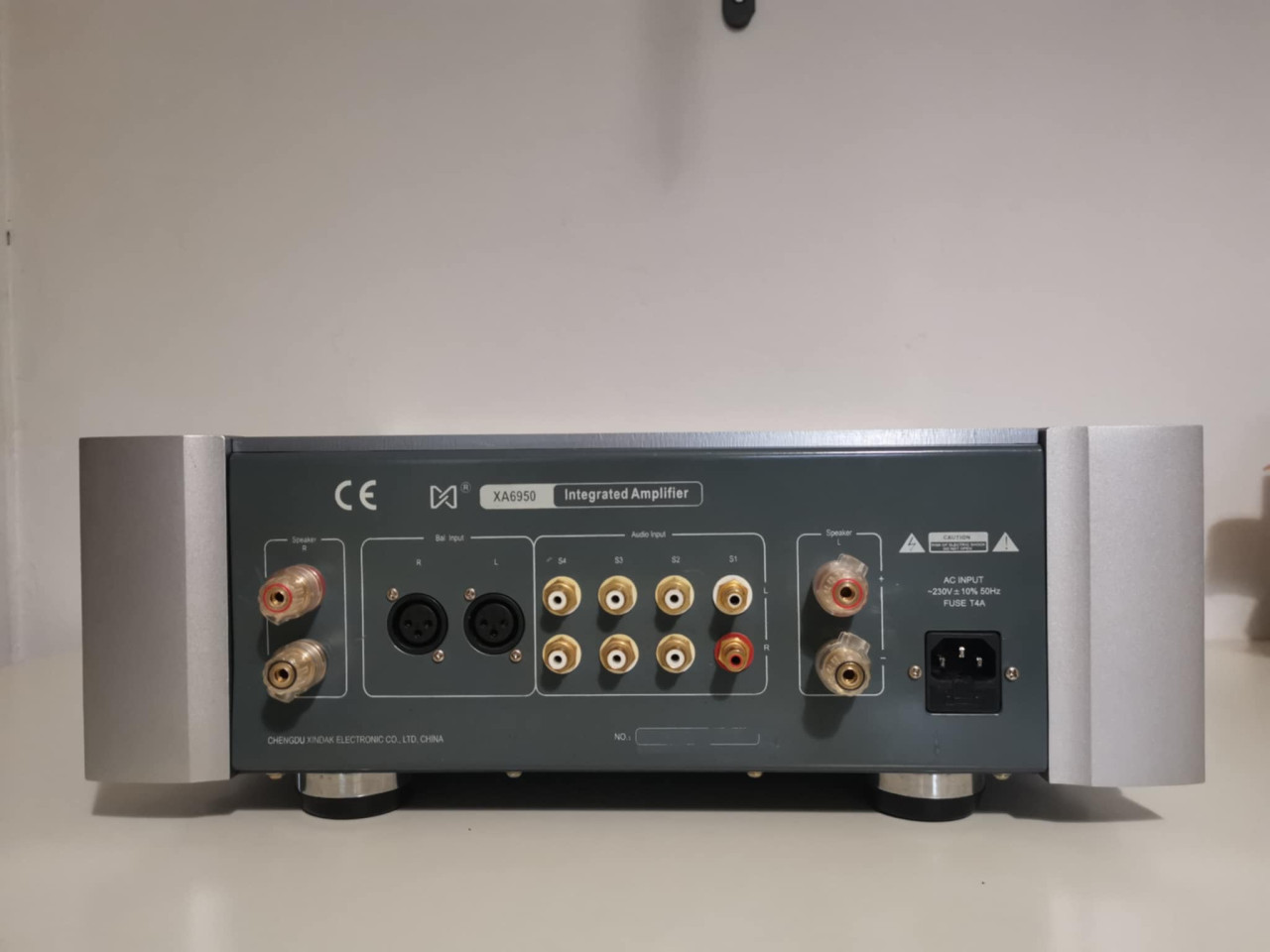

The connections behind are all quality RCA inputs for the highest performing signal source, excellent RCAs for the other signals, XLR inputs and connections for top speakers. The first 30 watts are class A.

This is what the importer writes to me:

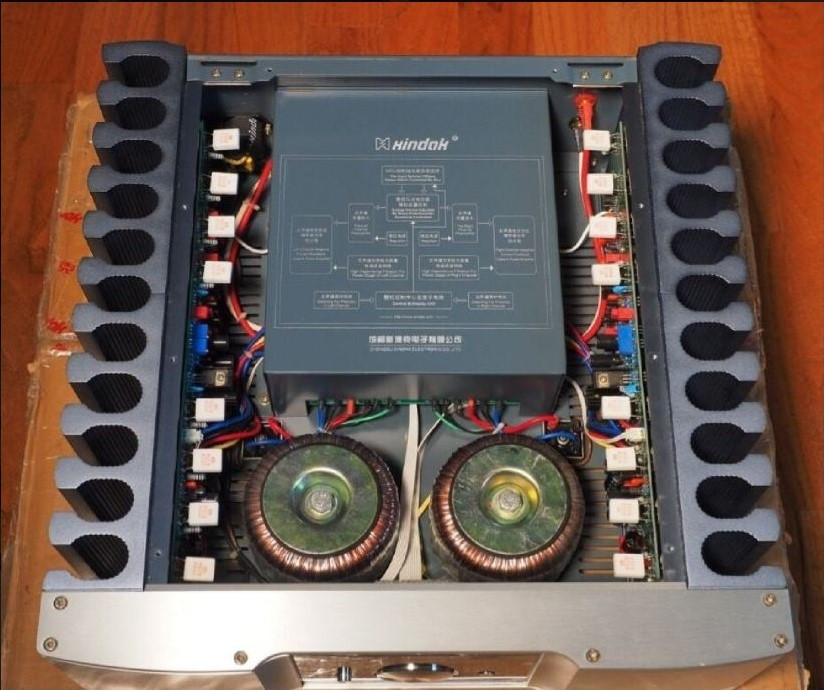

But you haven't seen the most beautiful part of the 6950! ! ! If you remove the lid with the writing, it's a spectacle underneath! WIMA capacitors in quantity, the legendary ALPS Blue potentiometer electronically driven through a motorized shaft. Total symmetry in that section too.

Also note the microswitches connected to the rear RCA inputs, of the electroactuated type, to avoid the "bump" effect when switching from one source to another.

It really is an amplifier made with all the trappings of quality you would expect from a product double or triple the price.

Rodalo at least fifty hours, it transforms further! Even more bass control, even more current!

From the official website:

This unit adopts two different symmetrical and complementary pushpull amplifications.

A FET (Field Effect Transistor) transistor is positioned on the amplification path, while the subsequent stage adopts a symmetrical feedback circuit with wide frequency response and distortion-free.

For each channel there are two pulse stages with four pairs of high-quality, high-capacity Hi-Fi matched transistors, which allow for a wide dynamic range and great control ability over low frequencies.

Two toroidal power transformers are adopted for the left and right channels, each of which follows a separate amplification path.

For volume control, a large blue ALPS motorized potentiometer is used, operating in the exclusive mode called "indirect digitally controlled analogue potentiometer", patented by Xindak, and which ensures maximum precision and absence of signal distortion.

The front panel is enriched by a functional VFD display of generous dimensions and great visual impact. All functions can be conveniently controlled remotely with a practical remote control.

The amplifier is controlled by a microcomputer equipped with different protection functions that offer safety and simple use
