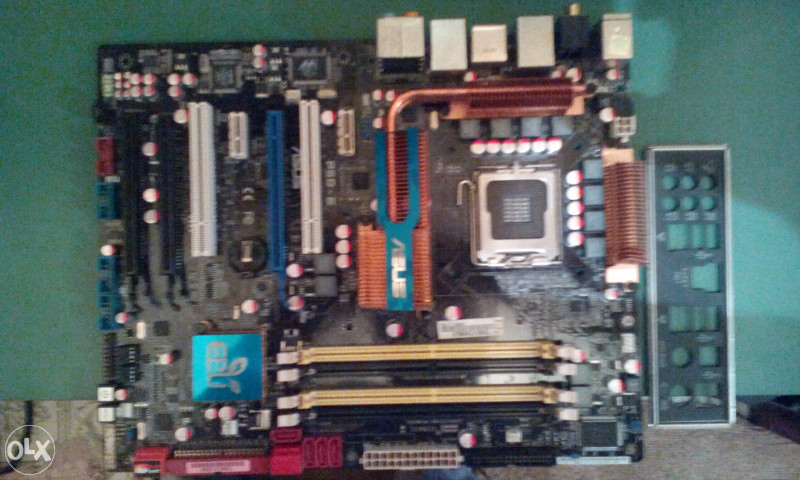

MAtiČNA PLOČA 775 ASUS P5Q - E DDR2  + CPU CORE 2 DUO 3GHz

KUPAC plača OLX DOSTAVU 11 _KM putem integrisane dostave BH Post Express klikom na artikl - ispod-Naruči - popunite vase podatke i potvrdite naruđbu i OK

ima limić / šild - straznji lim

.......................................................................

ASUS P5Q-E Micro ATX Intel Socket 775 Motherboard

Summary - Good working condition. Specifications below -

Specifications

Manufacturer

Asus

Part #

P5Q-EM DO

Socket / CPU

LGA775

Form Factor

Micro ATX

Chipset

Intel Q45

Memory Max

16 GB

Memory Type

DDR2

Memory Slots

4

Memory Speed

DDR2-800

Color

Black / Yellow

PCIe x16 Slots

1

PCIe x8 Slots

0

PCIe x4 Slots

0

PCIe x1 Slots

2

PCI Slots

1

Mini-PCIe Slots

0

Half Mini-PCIe Slots

0

Mini-PCIe / mSATA Slots

0

mSATA Slots

0

PATA 100

1

SATA 3.0 Gb/s

6

Onboard Ethernet

1 x 1 Gb/s

Onboard Video

Yes

USB 2.0 Headers

4

USB 2.0 Headers (Single Port)

0

USB 3.2 Gen 1 Headers

0

USB 3.2 Gen 2 Headers

0

USB 3.2 Gen 2x2 Headers

0

Supports ECC

No

Wireless Networking

None

RAID Support

Yes

Processor

Processor manufacturer *

Intel

Processor socket *

LGA 775 (Socket T)

Memory

Number of memory slots *

4

Non-ECC

Maximum internal memory *

16 GB

Storage controllers

RAID levels

0, 1, 10

Internal I/O

USB 2.0 connectors *

6

Number of SATA connectors

6

Front panel audio connector

CD/AUX audio in

Power fan connector

Number of chassis fan connectors

1

Number of COM connectors

1

Number of IEEE1394 connectors

1

TPM connector

Rear panel I/O ports

USB 2.0 ports quantity *

6

Ethernet LAN (RJ-45) ports *

2

PS/2 ports quantity

1

Firewire (IEEE 1394) ports

1

S/PDIF out port

Features

Audio chip

ADI AD2000B

Audio output channels *

7.1 channels

Motherboard form factor *

ATX

Power source type

ATX

Expansion slots

Expansion slots

2 x PCI Express 2.0 x16 1 x PCI Express x16 2 x PCI Express x1 2 x PCI

BIOS

BIOS memory size

16 Mbit

Weight & dimensions

Width

305 mm

Depth

244 mm

Other features

Floppy disk drive connector

.........................................................................................................................

ASUS P5Q-E motherboard LGA 775 (Socket T) ATX

Brand : ASUS Product code: P5Q-E

Product name : P5Q-E

P5Q-E - LGA775, 1600/1333/1066/800 MHz, Intel P45/ICH10R, DDR2 1200/1066/800/667MHz, ATI

CrossFireX™, Marvell 88E8056/88E8001® Gigabit LAN, ADI® AD2000B, ATX

ASUS P5Q-E. Processor manufacturer: Intel, Processor socket: LGA 775 (Socket T). Maximum internal

memory: 16 GB. RAID levels: 0, 1, 10. Motherboard form factor: ATX, Audio output channels: 7.1

channels, Audio chip: ADI AD2000B. BIOS memory size: 16 Mbit

ASUS P5Q-E motherboard LGA 775 (Socket T) ATX

Brand : ASUS Product code: P5Q-E

Product name : P5Q-E

P5Q-E - LGA775, 1600/1333/1066/800 MHz, Intel P45/ICH10R, DDR2 1200/1066/800/667MHz, ATI

CrossFireX™, Marvell 88E8056/88E8001® Gigabit LAN, ADI® AD2000B, ATX

ASUS P5Q-E. Processor manufacturer: Intel, Processor socket: LGA 775 (Socket T). Maximum internal

memory: 16 GB. RAID levels: 0, 1, 10. Motherboard form factor: ATX, Audio output channels: 7.1

channels, Audio chip: ADI AD2000B. BIOS memory size: 16 Mbit

Processor

Processor manufacturer * Intel

Processor socket * LGA 775 (Socket T)

Memory

Number of memory slots * 4

Non-ECC

Maximum internal memory * 16 GB

Storage controllers

RAID levels 0, 1, 10

Internal I/O

USB 2.0 connectors * 6

Number of SATA connectors 6

Front panel audio connector

CD/AUX audio in

Power fan connector

Number of chassis fan connectors 1

Number of COM connectors 1

Number of IEEE1394 connectors 1

TPM connector

Rear panel I/O ports

USB 2.0 ports quantity * 6

Ethernet LAN (RJ-45) ports * 2

PS/2 ports quantity 1

Firewire (IEEE 1394) ports 1

S/PDIF out port

Features

Audio chip ADI AD2000B

Audio output channels * 7.1 channels

Motherboard form factor * ATX

Power source type ATX

Expansion slots

Expansion slots

2 x PCI Express 2.0 x16 1 x PCI

Express x16 2 x PCI Express x1 2 x

PCI

BIOS

BIOS memory size 16 Mbit

Weight & dimensions

Width 305 mm

Depth 244 mm

Other features

Floppy disk drive connector

Brand ASUS Model P5Q-E Supported CPUCPU Socket Type LGA 775CPU Type Celeron / Celeron Dual-Core / Core 2 Duo / Core 2 Extreme / Core 2 Quad / Pentium 4 / Pentium D / Pentium Dual-CoreFSB 1600/1333 MHzChipsetsChipset Intel P45South Bridge Intel ICH10ROnboard VideoOnboard Video Chipset NoneMemoryNumber of Memory Slots 4x240pinMemory Standard DDR2 1200Maximum Memory Supported 16GBChannel Supported Dual ChannelExpansion SlotsPCI Express 2.0 x16 2 x PCI Express 2.0 x16 slots, support ATI CrossFireX technology, at x8 link

(black at max. x8 link)PCI Express x4 1 x PCI Express x16 slot at max. x4 link(black)PCI Express x1 2 x PCI Express x1PCI Slots 2 x PCI SlotsStorage DevicesPATA 1 x ATA100 2 Dev. MaxSATA 3Gb/s 8 x SATA 3Gb/sSATA RAID 0/1/5/10Onboard AudioAudio Chipset ADI AD2000BAudio Channels 8 ChannelsOnboard LANLAN Chipset Marvell 88E8056Second LAN Chipset Marvell 88E8001Max LAN Speed 2 x 1GbpsRear Panel PortsPS/2 1USB 1.1/2.0 6 x USB 2.0IEEE 1394 1 x IEEE 1394aeSATA 1 x eSATA 3Gb/sS/PDIF In 1 x Optical, 1 x CoaxialAudio Ports 6 PortsInternal I/O ConnectorsOnboard USB 3 x USB connectors support additional 6 USB portsOnboard 1394 1 x 1394aPhysical SpecForm Factor ATXDimensions (W x L) 12.0" x 9.6"Power Pin 24 PinFeaturesFeatures ATI CrossFireX Technology ~ Exceptional 3D Experience

EPU-6 Engine ~ System Level Energy Saving

Drive Xpert ~ Enhance Data Backup or HDD performance

Express Gate ~ 5 Secs from Bootup to Online!

100% Japan-made Solid Capacitor ~ Best Quality

,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,

                    Overclocking

This motherboard features advanced manual options that aid in overclocking and performance-tuning efforts.

                    Chipset Type

Intel P45 Express / Intel ICH10R

            Compatible Processors

Celeron, Core 2 Duo, Core 2 Extreme, Core 2 Quad, Pentium Dual Core, Celeron Dual Core

                Processor Socket

LGA775 Socket

                 Max Bus Speed

1600 MHz

              Max Processors Qty

1

                   Manufacturer

Asus

              Expansion Slots

1 x CPU

4 x DIMM 240-pin

2 x PCIe 2.0 x16

1 x PCIe x16

2 x PCIe x1

2 x PCI

              Storage Interfaces

Intel ICH10R: SATA-300 -connectors: 6 x 7pin Serial ATA - 6 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5

Marvell 88SE6121: SATA-300 -connectors: 1 x 7pin external SATA - 1 devices

Marvell 88SE6121: ATA-133 -connectors: 1 x 40pin IDC - 2 devices

Silicon Image SiI5723: SATA-300 -connectors: 2 x 7pin Serial ATA - 2 devices

Internal Interfaces

1 x floppy

Additional Connectors (Optional)

4 x USB 2.0

Power Connectors

24-pin main power connector, 8-pin ATX12V connector

RAID Features

Intel Matrix RAID Technology

PROCESSOR

Max Supported Qty

1

Installed Qty

0

AUDIO

Audio Codec

AD2000B

Compliant Standards

High Definition Audio

PROCESSOR / MEMORY / STORAGE

Max Supported Qty

1

MISCELLANEOUS

Microsoft Certifications

Certified for Windows Vista

Product Type

motherboard

INTERFACE PROVIDED

Qty

1, 2, 8

Type

FireWire, LAN (Gigabit Ethernet), PS/2 keyboard / mouse, SPDIF out, TOSLINK, USB 2.0, audio line-in, audio line-out, audio line-out (center/subwoofer), audio line-out (rear), audio line-out (side surround), microphone

Connector Type

4 pin FireWire, 6 pin FireWire, mini-jack

NETWORKING

Data Link Protocol

Ethernet, Fast Ethernet, Gigabit Ethernet

Network Controller

Marvell Yukon 88E8056 / Yukon 88E8001

Network

2 x Gigabit Ethernet

RAM

Max Supported Size

16 GB

Features

dual channel memory architecture

AUDIO OUTPUT

Sound Output Mode

7.1 channel surround

Compliant Standards

High Definition Audio

Type

sound card

Audio Codec

AD2000B

Audio

High Definition Audio (8-channel)

VIDEO

Video Output

none

LAN

Network Interfaces

2 x Gigabit Ethernet

Network Controller

Marvell Yukon 88E8056 / Yukon 88E8001

SUPPORTED RAM

Bus Clock

1200 MHz, 1066 MHz, 800 MHz, 667 MHz

Registered or Buffered

Unbuffered

Features

Dual channel memory architecture

Speed

PC2-9600, PC2-8500, PC2-6400, PC2-5300

Technology

DDR2

Max Size

16 GB

Supported RAM Integrity Check

Non-ECC

HEADER

Brand

ASUS

Product Line

ASUS

Model

P5Q-E

Packaged Quantity

1

Compatibility

PC

MAINBOARD

Form Factor

ATX

Processor Socket

LGA775 Socket

Compatible Processors

Celeron, Celeron Dual Core, Core 2 Duo, Core 2 Extreme, Core 2 Quad, Pentium Dual Core

Data Bus Speed

1600 MHz

Chipset Type

Intel P45 Express

I/O Controller

Intel ICH10R

Supported RAM Technology

DDR2 SDRAM

Supported RAM Speed

1066 MHz, 1200 MHz, 667 MHz, 800 MHz

Supported RAM Standard

PC2-5300, PC2-6400, PC2-8500, PC2-9600

Supported RAM Integrity Check

non-ECC

Supported RAM (Registered or Buffered)

unbuffered

RAM Slots

4 DIMM slots

Power Connectors

24-pin main power connector, 8-pin ATX12V connector

MAINBOARD FEATURES

BIOS Type

AMI

BIOS Features

ASUS EZ Flash 2, ASUS MyLogo3, ASUS O.C. Profile, DMI 2.0 support, SMBIOS 2.4 support, WfM 2.0 support

Sleep / Wake Up

wake on LAN (WOL), wake on ring (WOR)

Manual Settings

PCI Express x16 slot frequency, memory voltage, processor core voltage

Hardware Features

AMD CrossFireX technology support, ASUS 3rd Generation 8-phase Power Design, ASUS AI Audio 2, ASUS AI Direct Link, ASUS AI NET2, ASUS AI Nap, ASUS Drive Xpert, ASUS EPU-6 Engine, ASUS Express Gate, ASUS Fan Xpert, ASUS Noise Filter, ASUS Precision Tweaker 2, ASUS Q-Connector, ASUS Q-Shield, ASUS Stepless Frequency Selection (SFS), C.P.R. (CPU Parameter Recall), Die-Hard BIOS, Onboard Switch, Stack Cool 2, Teaming Technology, chassis intrusion detection, heat pipe chipset cooling

INTERFACES

Storage

ATA-133, Serial ATA-300 (RAID), eSATA port

RAID Features

Intel Matrix RAID Technology

USB 3.0 / FireWire

FireWire

EXPANSION SLOTS

Total Qty

1, 2, 4

Type

CPU, DIMM 240-pin, PCI, PCIe 2.0 x16, PCIe x1, PCIe x16

CABLE DETAILS

Type

IDE cable, Serial ATA cable, Serial ATA power adapter, floppy cable

Included Qty

1, 6

DIMENSIONS & WEIGHT

Width

12 in

Depth

9.6 in

SOFTWARE

Software Included

ASUS AI Suite, ASUS Express Gate, ASUS Live Update, ASUS PC Probe 2, drivers & utilities

STORAGE INTERFACES

Chip

Intel ICH10R, Marvell 88SE6121, Silicon Image SiI5723

Interface

ATA-133, Serial ATA-300

Connector(s)

1 x 40pin IDC, 1 x 7pin external SATA, 2 x 7pin Serial ATA, 6 x 7pin Serial ATA

Supported Devices Qty

1, 2, 6

RAID (Level)

RAID 0 / RAID 1 / RAID 10 / RAID 5

SERVICE & SUPPORT

Type

3 years warranty

SERVICE & SUPPORT DETAILS

Type

limited warranty

Full Contract Period

3 years

INTERNAL INTERFACES

Type

floppy

Qty

1

FEATURES

Manual Settings

Processor core voltage, memory voltage, PCI Express x16 slot frequency

BIOS Type

AMI

Hardware Features

Chassis intrusion detection, Die-Hard BIOS, C.P.R. (CPU Parameter Recall), Stack Cool 2, heat pipe chipset cooling, ASUS AI Nap, ASUS Q-Connector, Onboard Switch, ASUS AI Audio 2, ASUS AI NET2, ASUS Noise Filter, ASUS Stepless Frequency Selection (SFS), ASUS AI Direct Link, ASUS Q-Shield, ASUS Precision Tweaker 2, ASUS 3rd Generation 8-phase Power Design, Teaming Technology, ASUS Express Gate, ASUS Drive Xpert, ASUS EPU-6 Engine, ASUS Fan Xpert, AMD CrossFireX technology support

BIOS Features

DMI 2.0 support, WfM 2.0 support, ASUS EZ Flash 2, ASUS MyLogo3, ASUS O.C. Profile, SMBIOS 2.4 support
