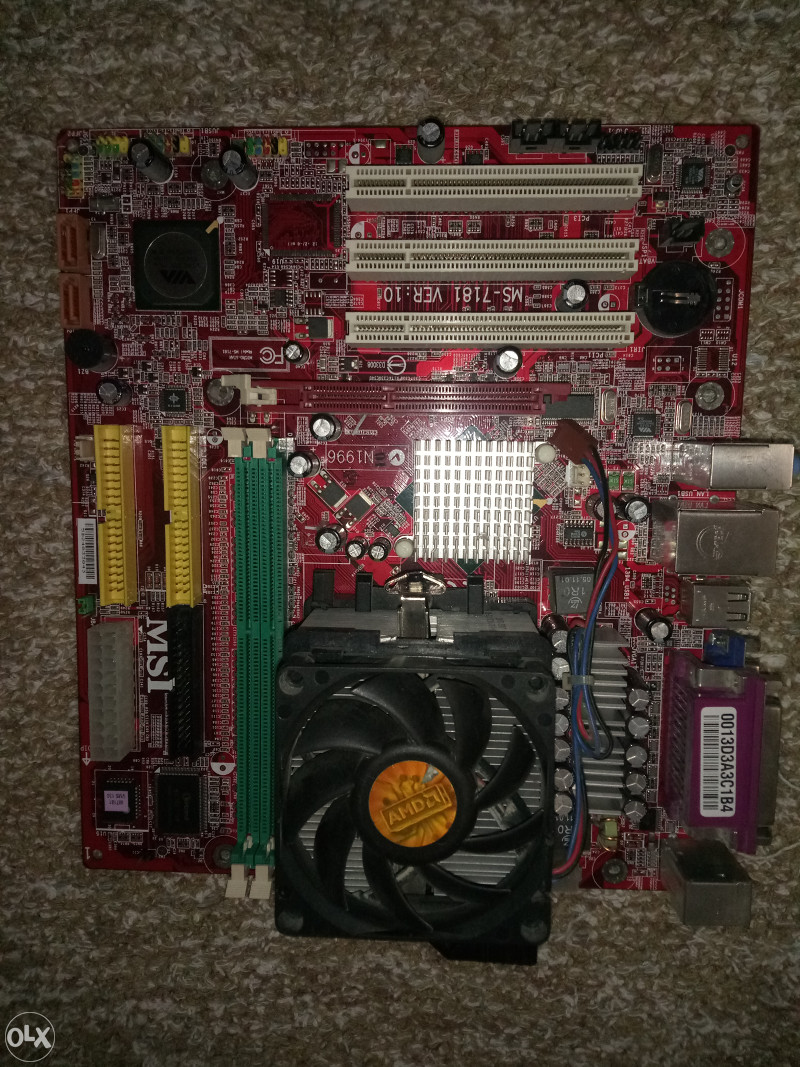

Matična ploča MSI (MS-7181 VER:10 )

CPU

• Supports 64-bit AMDR® Athlon™ 64, Sempron™ and Turion™ 64 processor (Socket 754)
• Athlon 64 2800+ ~ 3700+, Sempron 3400+
• Supports new E6 version CPU

Please refer to CPU Support for compatible CPU; the above description is for reference only.

Chipset

VIA® K8M800 Chipset

• HyperTransport™ connection to AMD® Athlon™ 64 processor
• 8 or 16 bit control/address/data transfer both directions
• 800/600/400/200MHz "Double Data Rate" operation both direction
• AGP v3.0 compliant with 8x transfer mode
• Graphic integrated

VIA® VT8237R Chipset

• Integrated Hardware Sound Blaster/Direct Sound AC97 audio
• Ultra DMA 66/100/133 master mode PCI EIDE controller
• ACPI & PC2001 compliant enhanced power management
• Supports 2 Serial ATA ports
• Supports 8 USB2.0 ports
• Supports SATA RAID 0 or 1

Memory

• Supports DDR266/333/400 DDR DRAM for two 184-pin DDR DIMMs
• Supports a maximum memory of 2GB

Expansion Slots

• One AGP 8x/4x slot
• AGP 3.0 specification compliant
• Three 32-bit Master PCI bus slots (support 3.3v/5v PCI bus interface)

Internal I/O Connectors

• ATX 20-Pin power connector
• 4-pin ATX 12V power connector
• CPU / System FAN connectors
• CD-in connector
• Aux Line-in connector
• IrDA infrared module header
• Clear CMOS jumper
• S/PDIF Out connector
• Serial port connector (COM2)
• 2 x USB 2.0 connector support additional 4 ports
• Front panel audio connector
• Front panel connector
• 2 x Serial ATA connectors
• 2 x ATA133 HD connectors

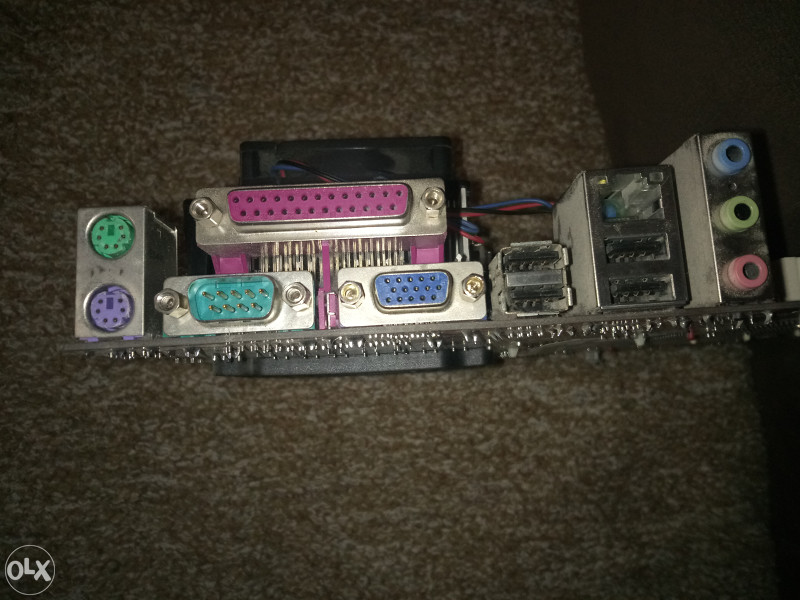

Back Panel I/O Ports

• 1 x PS/2 Keyboard
• 1 x PS/2 Mouse
• 1 x Parallel
• 1 x Serial port (COM 1)
• 1 x VGA
• 1 x Audio I/O (Line-in/Line-out/MIC)
• 4 x USB 2.0
• 1 x RJ45 LAN Jack
