Audio mikseta ANT ANTMIX 6FX

261,55 KM

Oglas nije mijenjao cijenu

Muzička oprema Muzička oprema i dijelovi Miksete
Audio mikseta ANT ANTMIX 6FX
Audio mikseta ANT ANTMIX 6FX
Audio mikseta ANT ANTMIX 6FX
Audio mikseta ANT ANTMIX 6FX
Audio mikseta ANT ANTMIX 6FX
Audio mikseta ANT ANTMIX 6FX
gallery images

4

Muzička oprema Muzička oprema i dijelovi Miksete

Osobine

Broj kanala 1 do 8
Datum objave 04.10.2021

Detaljni opis

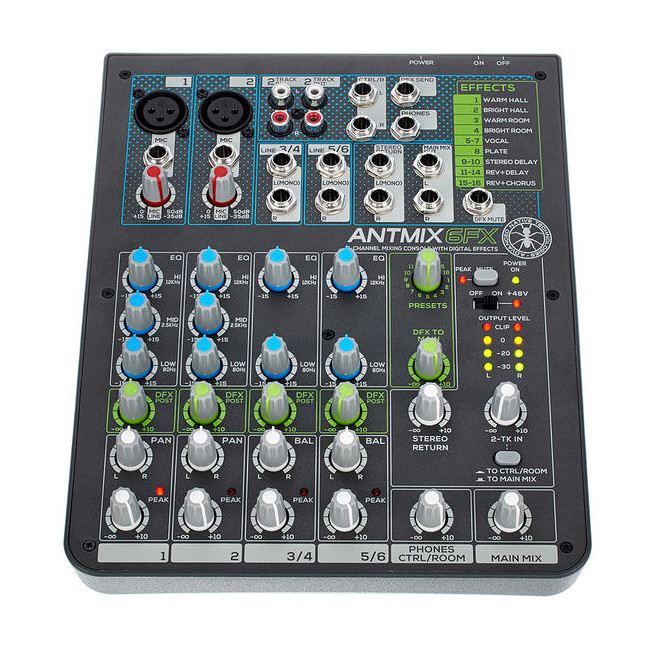

ANTMIX 6FX
6-CHANNEL MIXING CONSOLE
ANTMIX 6FX allows to manage sound in many different applications: a public speaking, a conference, but also more complex applications such as live music. The smart design of the console helps all kind of user to get the most of any audio performance. It represents a smooth solution featuring pro-details such as an advanced internal DSP with different effects and variations, 60 mm faders as well as a series of I/O to fulfill a wide range of applications.
Specifically designed for an immediate and user friendly use, this mixer satisfies the needs of those who want an audio mixer providing excellent performances, wide versatility of connections and controls.
• Make the most of any live audio performance
• 24-bit Digital Sound Processed EFFECTS for the most creative mix
• On-board mic preamp for low-noise and more dynamic range


MONO mic/line inputs: 2
Mic mono/stereo line inputs: -
Stereo line input: 2
Dimensions (W x H x D): 196 x 68 x 243 mm
Weight: 1,18 Kg

MICROPHONE IMPUT
Connector: Balanced XLR
Impedance: 1.8 kΩ
Frequency response: 20~20kHz +/-1dB
Distortion (THD + N): <0,03% @ +0dB, 22~22 kHz, A weighted
Gain: 0~55dB
Max input: +15dB (balanced)
Low-cut: 75Hz 12dB/oct.
Signal-to-noise ratio: Phantom powering: +48V

LINE INPUT
Connector Balanced: 6,35mm (1/4”) - unbalanced RCA
Impedance: 10 kΩ
Frequency response: 20~20kHz +/-1dB
Distortion (THD + N): <0,03% @ +0dB, 22~22 kHz, A weighted
Gain: +15dB~-35dB
Signal-to-noise ratio:

COMMON SPECIFICATION
Compressor (only for channels featuring this control): Gain: 0 ---> 9 dB | Soglia: 20 dB ---> 5 dB
Hum & noise: < -80dB (A weighted, full bandwidth, 1 channel and MAIN @ 0dB, other chan- nels @ minimum)
Crosstalk: < -80dB (A weighted, full bandwidth, 1 channel and MAIN @ 0dB, other chan- nels @ minimum)

EQUALIZATION AND 2-TRACK IN
Mono & mono/stereo channels: +/-15 dB @12 kHz / +/-15 dB @2.5 kHz /+/-15 dB @80 Hz+/-15 dB @12 kHz +/-15 dB @2.5 kHz / +/-15 dB @80 Hz +/-15 dB @12 kHz / +/-15 dB @2.5 kHz+/- 15 dB @80 Hz
Stereo channels: +/-15 dB @12 kHz / +/-15 dB @80 Hz+/-15 dB @12 kHz +/-15 dB @80 Hz+/-15 dB @12 kHz / +/-15 dB @80 Hz

MICROPHONE INPUT
Connector: 2 x unbalanced RCA
Impedance: 10 kΩ
Frequency response: 20~20kHz +/-1dB
Distortion (THD + N): <0,03% @ +0dB, 22~22 kHz, A weighted
Gain: OFF~+15dB

STEREO RETURNS
Connector: 2 x balanced 6,35mm (1/4”)
Impedance: 10 kΩ
Frequency response: 20~20kHz +/-1dB
Distortion (THD + N): <0,03% @ +0dB, 22~22 kHz, A weighted
Gain: OFF~+15dB

DSP
A/D - D/A converters: 24 bit
Number of e ects: 16 for 6FX – 100 for 8Fx and 12FX
Controls: Presets rotary selector - 16 position (6FX) or 100 position (8FX & 12FX) DFX MUTE footswitch / DFX MUTE switch / DFX button (only 8FX & 12FX) Presets rotary selector - 16 position (6FX) or 100 position (8FX & 12FX) DFX MUTE footswitch / DFX MUTE switch / DFX button (only 8FX & 12FX)

OUTPUTS
MAIN MIX connectors: 2 x TRS 6,35mm (1/4”) connector (XLR in 12FX)
MAIN MIX max output level: +22 dBu XLR balanced (+16 dBu unbalanced)
MAIN MIX output impedance: 120 Ω
GR1-2 in connectors (12FX only): 2 x TRS balanced 6,35mm (1/4”)
GR1-2 max output level (12FX only): +22 dBu XLR balanced (+16 dBu unbalanced)
GR1-2 output impedance (12FX only): 120 Ω
Headphones connector: Unbalanced TRS 6,35mm (1/4”)
Headphones impedance: 30 Ω
Control room connectors: 2 x balanced TRS 6,35mm (1/4”)
Control room impedance: 120 Ω
2-TK connectors: 2 x unbalanced RCA
2-TK impedance: 1 kΩ


„Set Up S“ d.o.o.
Maršala Tita bb
AVAZ Robot centar

Tel.: 035/262-405
Viber: 061/080-390
www.setup.ba
