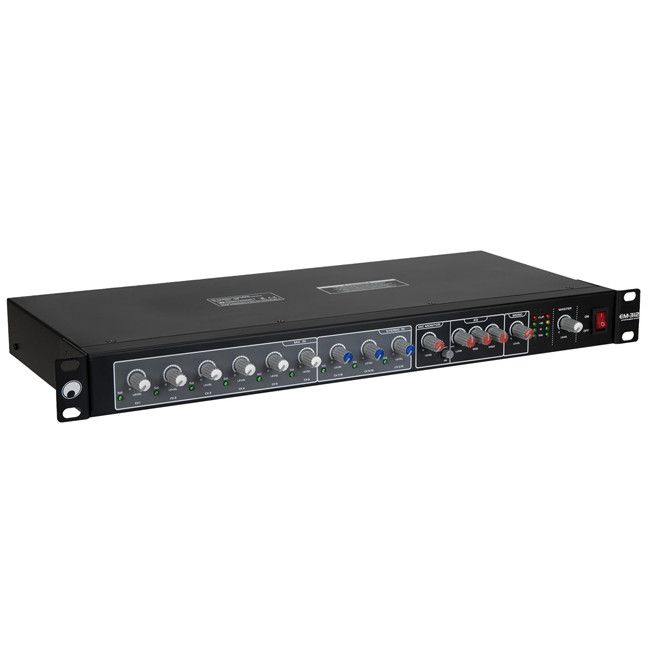

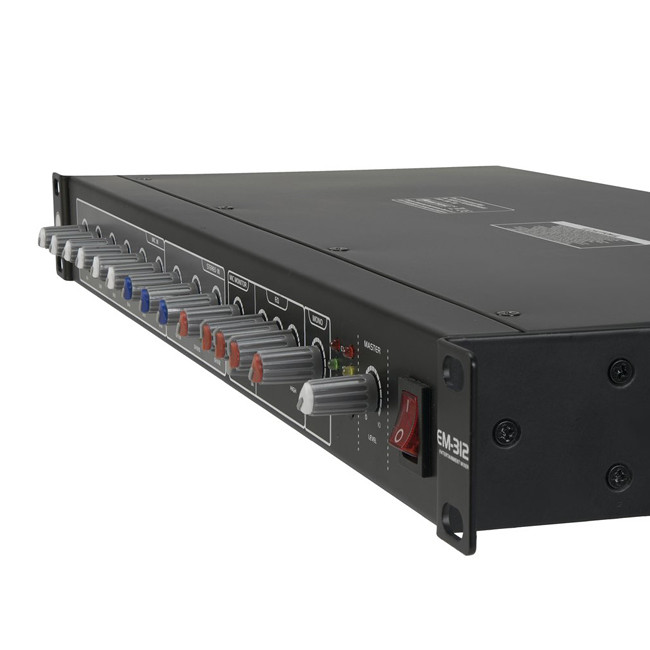

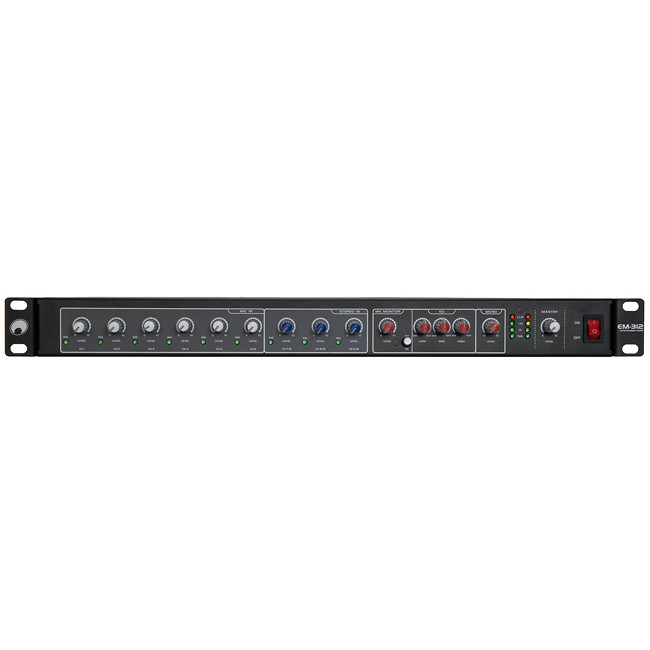

Audio mikseta EM-312 OMNITRONIC

325 KM

Oglas nije mijenjao cijenu

Muzička oprema Muzička oprema i dijelovi Miksete
Audio mikseta EM-312 OMNITRONIC
Audio mikseta EM-312 OMNITRONIC
Audio mikseta EM-312 OMNITRONIC
Audio mikseta EM-312 OMNITRONIC
Audio mikseta EM-312 OMNITRONIC
Audio mikseta EM-312 OMNITRONIC
Audio mikseta EM-312 OMNITRONIC
Audio mikseta EM-312 OMNITRONIC
Audio mikseta EM-312 OMNITRONIC
gallery images

7

Muzička oprema Muzička oprema i dijelovi Miksete

Osobine

Broj kanala 1 do 8
Datum objave 05.06.2021

Detaljni opis

Power supply: 230 V AC, 50 Hz Or 24 V DC
Power consumption: 12 W
Protection class: Class I

Power connection:
Mains input IEC connector (M) mounting version Power supply cord with safety plug
Mains input screw terminal
Frequency range: 20 - 22000 Hz
S/N ratio: >103 dB
THD: Phantom power: 18 V DC or 21 V DC

Impedance:
Input mic/line: 1.4 kOhm
Input line: 10 kOhm
Output 120 Ohm
Control elements: Power switch
Status LED: Signal, master level meter, clip, power

Connections:
Input: 6 x mic/line via 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Input: 3 x line via stereo RCA
Output: 2 x master via 3-pin XLR
Output: 1 x mono via 6.3 mm jack socket (mono) mounting version
Output: 1 x line via 6.3 mm jack socket (mono) mounting version
Output: 1 x rec. via stereo RCA

Chanals:
Input chanel: 6 x mono with Mic-line switch via 3-pin XLR/6.35mm jack (F) combination socket (mounting version), channel control via Rotary dial, 3-band tone control EQ 80Hz/2,5kHz/12kHz
Input chanel: 3 x stereo via RCA, channel control via Rotary dial, 3-band tone control EQ 80Hz/2,5kHz/12kHz
Master output: 1 x stereo via XLR, channel control via Rotary dial
Master output: 1 x mono via Plug 6,3mm/3,5mm (Jack), channel control via Rotary dial

Max. level:
Input: Microphone -19 dBu
Input: line +21 dBu
Output: +21 dBu

Housing design: (19") 48.3 cm rack installation 1 U
Dimension: 48.3 x 23 x 4.45 cm
Weight: 3.04 kg
