KEMO M 172 N Bicycle USB Charger, biciklo punjač

60 KM

Dijelovi za vozila Za bicikle Ostalo za bicikle

KEMO M 172 N Bicycle USB Charger, biciklo punjač

Dijelovi za vozila Za bicikle Ostalo za bicikle

Mostar Novo Obnovljen: 04.07.2025 u 11:17 ID: 43325920 Pregledi: 613

Detaljni opis

***kontakt broj za narudžbe i upite: 064 435 1756 (porukom na viber ili whatsapp)***

Mogu poslati brzim poštama BH express ili A2B...

Moja garancija 14 dana...

.52

https://www.kemo-electronic.de/en/House/Home/M172N-Bicycle-Power-Charge-Controller-USB.php

https://www.amazon.de/KEMO-Fahrrad-Power-Laderegler-USB/dp/B00DF4JOIM

https://www.aaaa-electronic.de/products.php?KEMO-M172N-Bicycle-Power-Charge-Controller-USB=&language=en_US¤cy=USD&osCsid=dgqqaot2j4lsleh4i5ph4si303

[M172N]
Click to enlarge | image may differ

EAN: 4024028031774
Datasheet (pdf)
Questions to the item
FAQ
Print preview

Allows the connection of mobile phones, navigators, PDAs, MP3-players, etc. to a bicycle dynamo. The charge controller has an USB-A jack. It is thus possible to use many charging cables of various devices. A charging cable with micro USB plug is enclosed. In addition this charge controller is especially powerful: input voltage up to max. 70 V (may occur with hub dynamos at very high speeds). Output: 5 V max. 800 mA (if your dynamo can produce this output, otherwise the current is lower: max. approx. 500 mA).

M172N installation hints

How can this device provide power even while standing still?

Supported Devices

M172N Bicycle Power Charge Controller USB

Download Video (wmv)
Download Video (wmv)

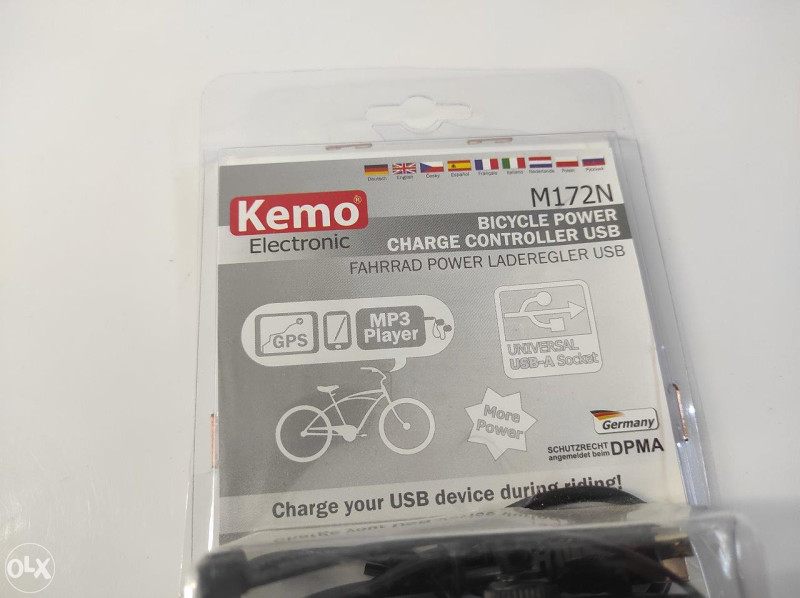

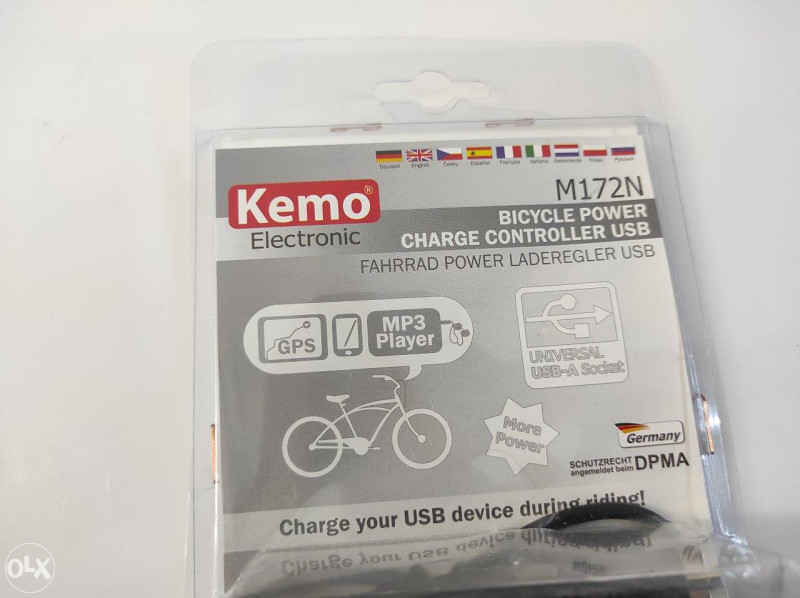

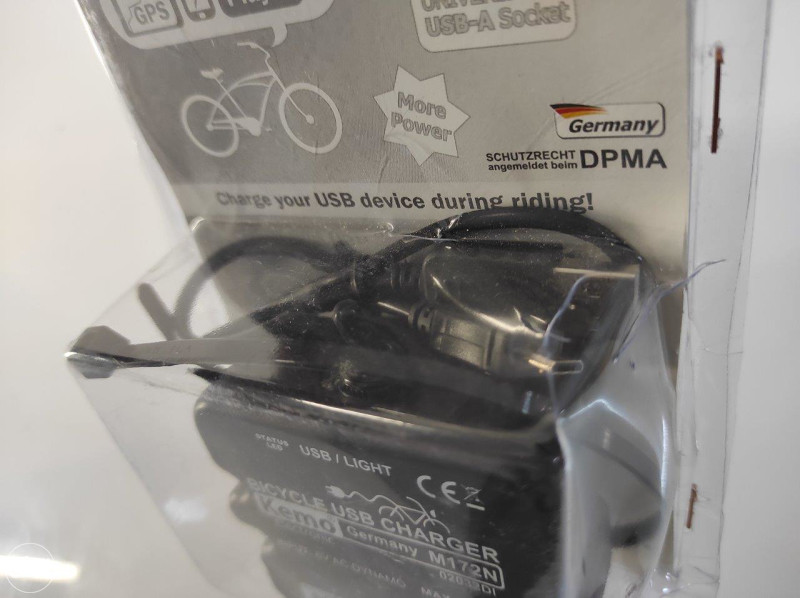

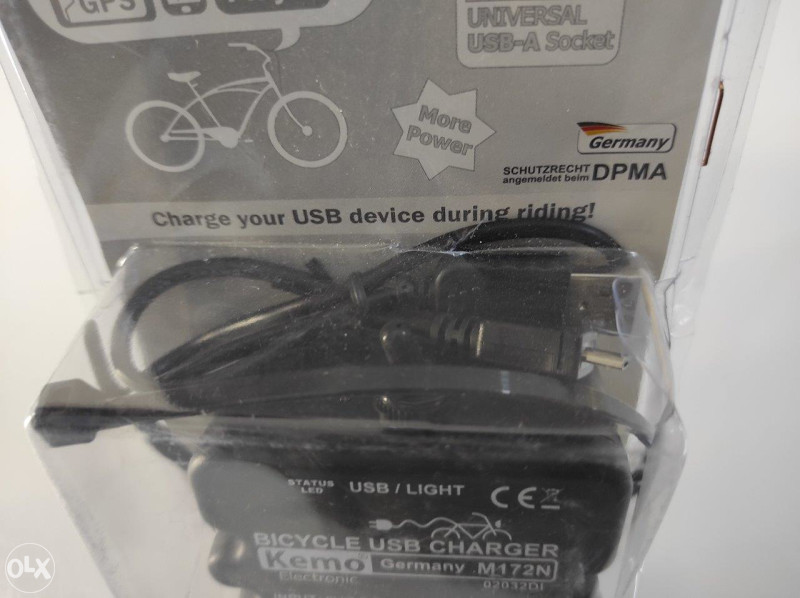

Bicycle Power Charge Controller USB

Image may differ
M172N

You buy one Bicycle Power Charge Controller USB from Kemo!

Allows the connection of mobile phones, navigators, PDAs, MP3-players, etc. to a bicycle dynamo. The charge controller has an USB-A jack. It is thus possible to use many charging cables of various devices. A charging cable with micro USB plug is enclosed. In addition this charge controller is especially powerful: input voltage up to max. 70 V (may occur with hub dynamos at very high speeds). Output: 5 V max. 800 mA (if your dynamo can produce this output, otherwise the current is lower: max. approx. 500 mA).

How is the device connected to the dynamo?
Please find out which of the two cables coming from the dynamo is connected to the centre lamp contact. Once the correct cable has been determined, it has to be separated within close proximity to the M172N. Take the end coming from the dynamo and connect it to the “Dynamo” connection on the M172N. The other cable end (going to the two lamps) is connected to the “Light” connection on the M172N. The “Frame” connection is connected with the wire that runs from the outer lamp contact to the dynamo.

Power reserve
You can also use a commercially available USB buffer battery (not included) to provide an additional power reserve while cycling.
You can find buffer batteries online for purchase as "Power Banks".
You should choose a power bank that has both USB input and output, and it should permit charging and discharging at the same time.

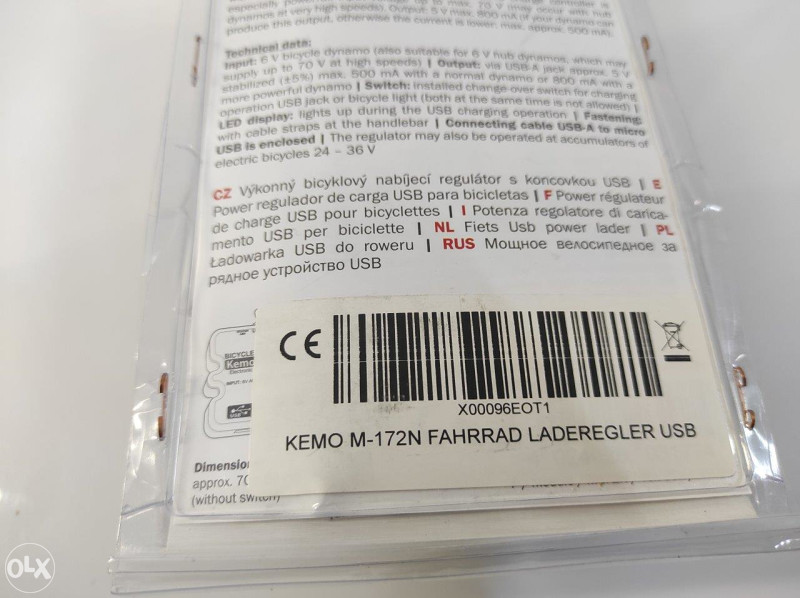

Technical Data

Input: 6 V bicycle dynamo (also suitable for 6 V hub dynamos, which may supply up to 70 V at high speeds)
Output: via USB-A jack approx. 5 V stabilized (±5 %) max. 500 mA with a normal dynamo or 800 mA with a more powerful dynamo
Switch: installed change-over switch for charging operation USB jack or bicycle light (both at the same time is not allowed)
LED display: lights up during the USB charging operation.
Fastening: with cable straps at the handlebar
Connecting cable USB-A to micro USB is enclosed
The regulator may also be operated at accumulators of electric bicycles 24 – 36 V
Dimensions: approx. 70 x 62 x 42 mm (without switch)

Shipping weight: approx. 0,1 kg
