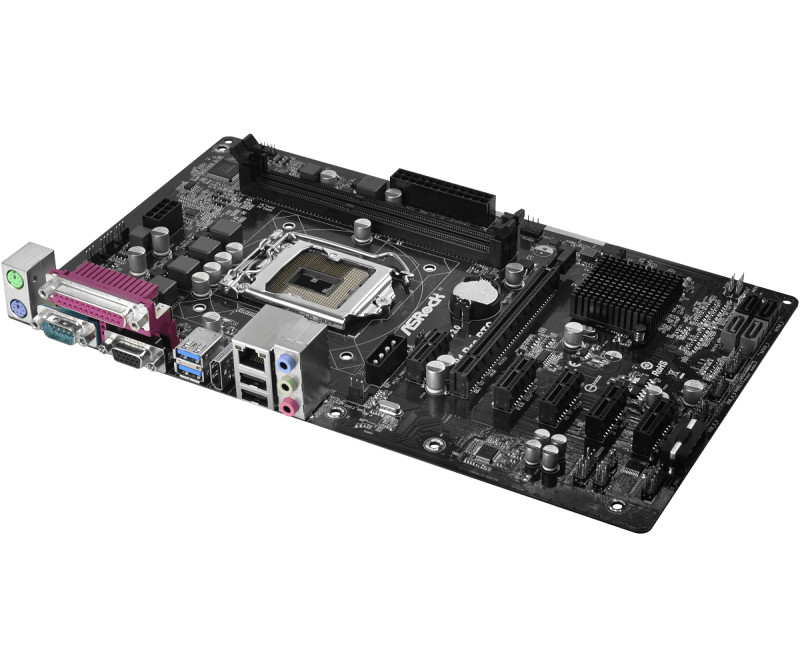

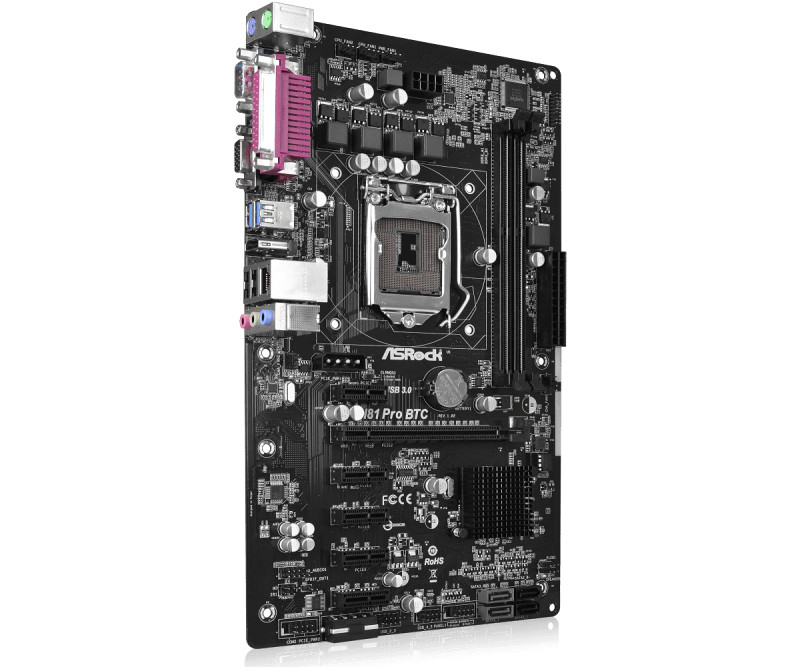

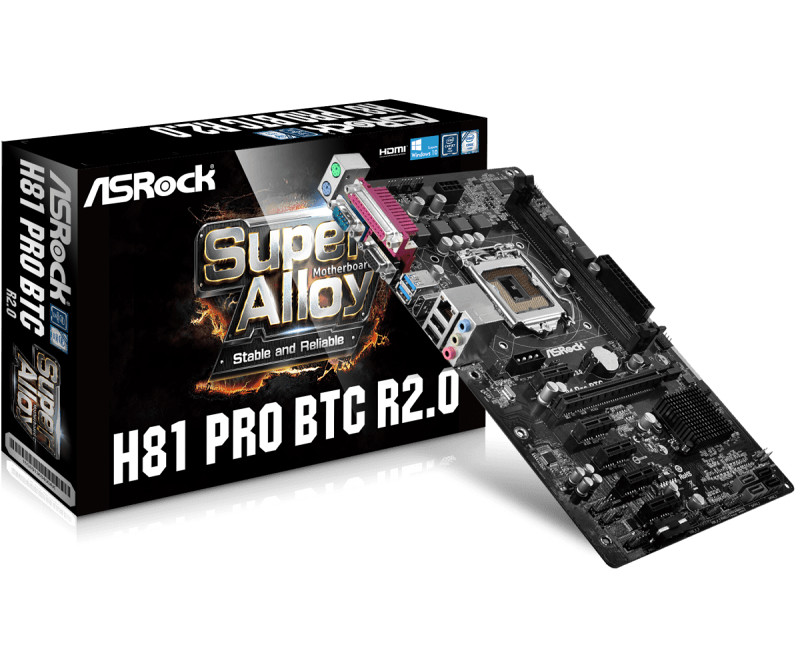

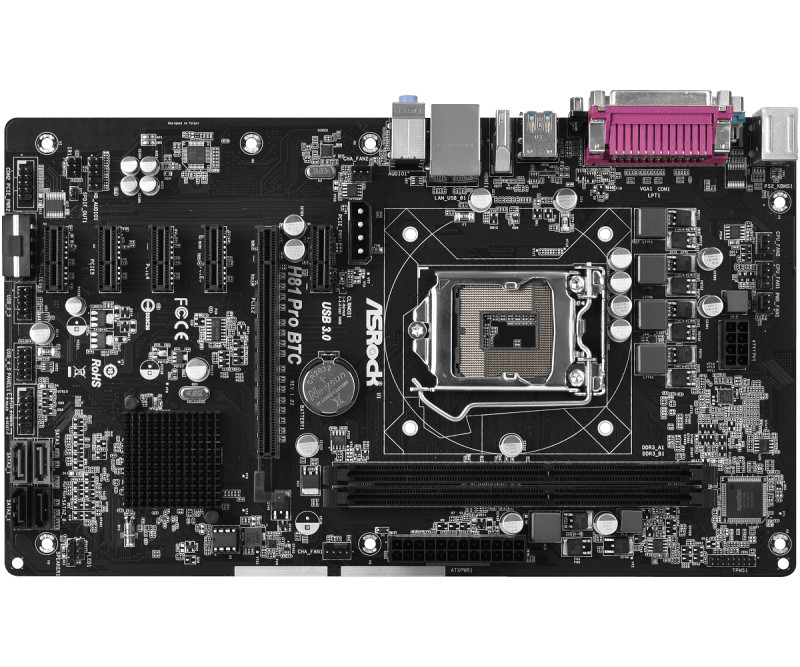

ASRock H81 Pro BTC R2.0 matična sa proc IntelCeleron

248 KM
  • 140 KM 12.04.2021 - u 16:09 sati
  • 268 KM 12.04.2021 - u 23:43 sati
gallery images

4

Detaljni opis

mob/viber 061 924 009

Nova i nikad korištena matična ploča sa ugrađenim procesorom
 Intel Celeron Dual Core G1840 2.8GHz 2MB L3 LGA1150
I procesor i ploča su potpuno novi.
( idealno za RIG - kopanje kriptovaluta) sa 6 utora za grafičke kartice

Velika količina opreme za mining, ramovi, kartice, matične, riseri .....

  • ASRock Super Alloy
  • Supports New 4th and 4th Generation Intel® Xeon® / Core™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1150)
  • All Solid Capacitor design
  • Digi Power, 4 Power Phase design
  • Supports Dual Channel DDR3 1600
  • 1 PCIe 2.0 x16, 5 PCIe 2.0 x1
  • Graphics output options: D-Sub, HDMI
  • 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
  • 2 SATA3, 2 SATA2
  • 2 USB 3.1 Gen1, 6 USB 2.0 (4 Front, 2 Rear)
  • Realtek Gigabit LAN
  • Unique Feature
    ASRock Super Alloy
    - High Density Glass Fabric PCB
    ASRock Full Spike Protection
    ASRock Live Update & APP Shop
  • CPU
    - Supports New 4th and 4th Generation Intel® Xeon® / Core™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1150)
    - Digi Power design
    - 4 Power Phase design
    - Supports Intel® Turbo Boost 2.0 Technology
  • Chipset
    - Intel® H81
  • Memory
    - Dual Channel DDR3 Memory Technology
    - 2 x DDR3 DIMM Slots
    - Supports DDR3 1600/1333/1066 non-ECC, un-buffered memory
    - Max. capacity of system memory: 16GB*
    - Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2

    *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
  • BIOS
    - 32Mb AMI UEFI Legal BIOS with multilingual GUI support
    - ACPI 1.1 Compliant wake up events
    - SMBIOS 2.3.1 support
    - CPU, DRAM, PCH 1.05V Voltage multi-adjustment
  • Graphics
    - Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 4400/4600
    - Pixel Shader 5.0, DirectX 11.1
    - Max. shared memory 512MB**
    - Dual Graphics Output: support HDMI and D-Sub ports by independent display controllers
    - Supports HDMI Technology with max. resolution up to 1920x1200 @ 60Hz
    - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
    - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
    - Supports HDCP with HDMI Port
    - Supports Full HD 1080p Blu-ray (BD) playback with HDMI Port

    *Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

    **The size of maximum shared memory may vary from different operating systems.

    ***Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit.

    ****Intel® InTru™ 3D is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit.
  • Audio
    - 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
    - Supports Surge Protection (ASRock Full Spike Protection)
  • LAN
    - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
    - Realtek RTL8111GR
    - Supports Wake-On-WAN
    - Supports Wake-On-LAN
    - Supports Lightning/ESD Protection (ASRock Full Spike Protection)
    - Supports LAN Cable Detection
    - Supports Energy Efficient Ethernet 802.3az
    - Supports PXE
  • Slots
    - 1 x PCI Express 2.0 x16 Slot (PCIE2: x16 mode)
    - 5 x PCI Express 2.0 x1 Slots
  • Storage
    - 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
    - 2 x SATA2 3.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
  • Connector
    - 1 x IR Header
    - 1 x COM Port Header
    - 1 x Power LED Header
    - 1 x TPM Header
    - 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)
    - 2 x Chassis Fan Connectors (1 x 4-pin, 1 x 3-pin)
    - 1 x Power Fan Connector (3-pin)
    - 1 x 24 pin ATX Power Connector
    - 1 x 8 pin 12V Power Connector
    - 2 x PCIe Power Connectors
    - 1 x Front Panel Audio Connector
    - 1 x SPDIF Out connector
    - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
  • Rear Panel I/O
    - 1 x PS/2 Mouse Port
    - 1 x PS/2 Keyboard Port
    - 1 x Serial Port: COM1
    - 1 x Parallel Port (ECP/EPP support)
    - 1 x D-Sub Port
    - 1 x HDMI Port
    - 2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
    - 2 x USB 3.1 Gen1 Ports (Supports ESD Protection (ASRock Full Spike Protection))
    - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    - HD Audio Jack: Line in / Front Speaker / Microphone
  • Software and UEFI
    Software
    - ASRock USB Key
    - ASRock APP Charger
    - ASRock XFast LAN
    - ASRock Fast Boot (Fast Boot, Restart to UEFI)*
    UEFI
    - ASRock Interactive UEFI
    - ASRock UEFI Guide
    - ASRock Instant Flash
    - ASRock Internet Flash
    - ASRock Crashless BIOS
    - ASRock UEFI Tech Service
    - ASRock Dehumidifier
    - ASRock Easy Driver Installer

    *These utilities can be downloaded from ASRock Live Update & APP Shop.
  • Support CD
    - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
  • Accessories
    - Quick Installation Guide, Support CD, I/O Shield
    - 2 x SATA Data Cables
  • Hardware Monitor
    - CPU, Chassis temperature sensing
    - CPU, Chassis, Power Fan Tachometer
    - CPU Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
    - CPU, Chassis Fan multi-speed control
    - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
  • Form Factor
    - ATX Form Factor: 12.0-in x 7.0-in, 30.5 cm x 17.8 cm
    - All Solid Capacitor design
  • OS
    - Microsoft® Windows® 10 32-bit / 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit*
