Constant Current Electronic Load Tester 200V 20A 150W

Elektronski ispitivač opterećenja 200V 20A 150W

Ovo je "ne-lažna verzija"

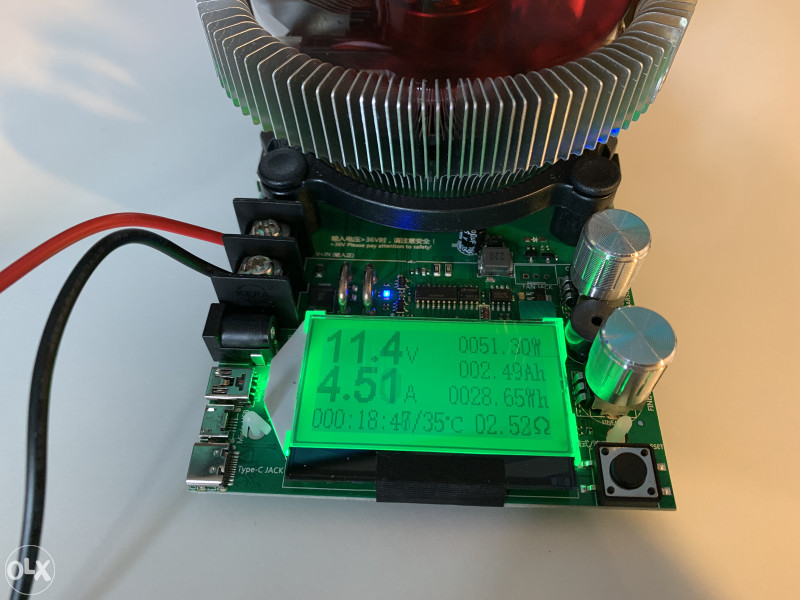

Electronic Load

Product Description:
- It can be taken as electronic constant current load,USB tester,cable detector.Built-in ontelligent temperature control and large power auto protection,safe discharger.
- Test charger function voltage and maximum current
- 8 in 1 measurement: voltage, current,power,battery capacity,impedance,temperature,energy,time,external waterproof temperature probe.

Scope of application:Universal test all kinds of batteries, all kinds of power supply, all kinds of charger

Specifications:
- Input interface/Output interface:100A large current  occluding screw column
- Voltage testing range:0.00V~200V;Resolution accuracy:0.01V
- Current testing range:0.00A~20A;Resolution accuracy:0.01A
- Capacity accumulated range:0~999.999Ah;Resolution accuracy:0.01Ah
- Electricity accumulated range:0~9999.9Wh;Resolution accuracy:0.01Wh
- Power measurement range:0000.00~150/180 W;Resolution accuracy:0.01W
- Impedance measurement range:1~999.9 ohm;Resolution accuracy:0.01ohm
- Temperature measurement range:0~99â,0~99â;Resolution accuracy:1â
- Timing the max time:999 hours 59minutes 59 seconds;Resolution accuracy:1s
- Timing testing alarm setting:count down 24 hours Arbitrary setting value
- Small current standby alarm threshold parameter and timing:<2W/0.5 hour; >0.5W begin timing
- 4~30V DC voltage provides electricity for testing system
- Refresh time:>500mS/times;> 500mS/times
- Testing speed rate:about 0.5 times/s
- Over voltage over current setting alarm method:display warming interface alrm users
- Over voltage warning setting range:1~200V
- Low voltage warning setting range:0~190V
- Over current warming setting range:0.2~100A
- Display screen type:micro power consumption crystal module LCM black font green backlight   Chinese English display screen
- Size:156x96x58mm
- Working temperature:-10~+60â; -10~+60â
- Working humidity:10~80â (no condensation);10~80â(no doubt)
- Working gas pressure:80~106kPa

Operation method:
Keystrokes using method and the capacity, power,time reset Settings:
1) Reset button long-press all data (mAh,Wh,00:00:00)
2) Quickly button twice - capacity Reset (mAh)
3) Quickly button three - power reset (Wh)
4) Quickly button four - time reset (00:00:00)
5) Quickly button five - Set up automatic standby and Discharge the countdown to remind regularly
6)When no load output no-load,quick seven keys,and for the current zero to zero in the current environment temperature for accurate calibration,so more can do more accurate measurement in small current.

WARNING!!: Exceeding the specified power will burn the product

Note: When testing high-voltage batteries and large power supplies, the two current knobs must be adjusted counterclockwise to a minimum of zero before connecting to use. After connecting, first adjust the current knob slowly according to the displayed current power. Do not adjust it to full at the moment. This will cause a huge risk that the load will burn the discharge tube due to the excessive power! Please pay special attention to this when using

Package List:
- 1 x 150W USB Mobile Power Tester
- 1 x Charger
- 1 x Crocodile clamp cable
- 1 x Crocodile clip to USB male head
