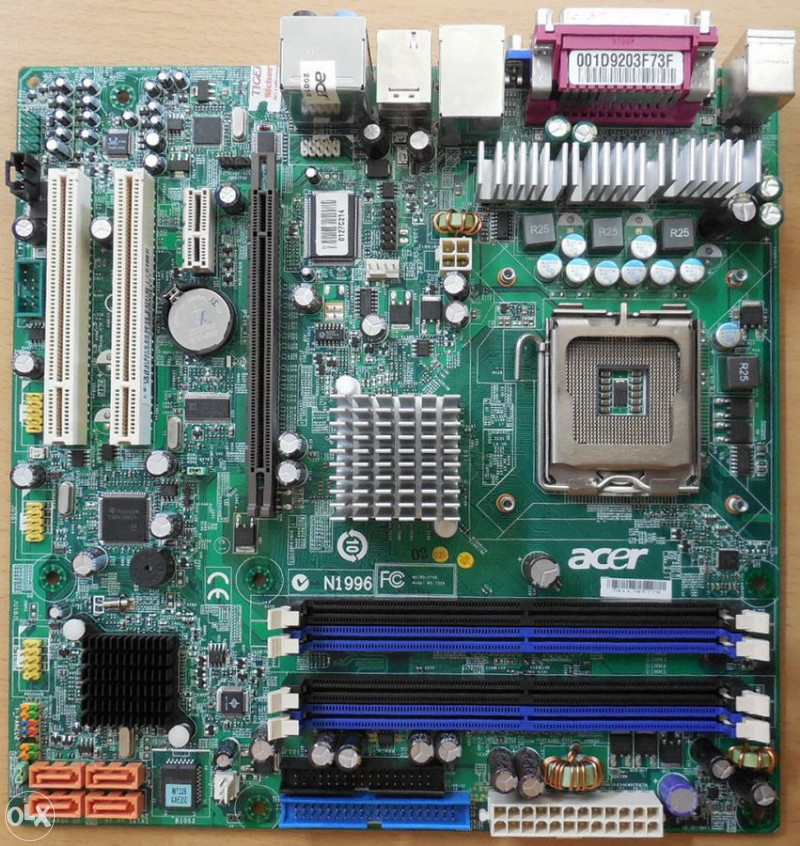

matična ploča Acer Aspire T671 HDMI

matična s procesorom je 25 km bez drugih hardwera---------matična i procesor je 25km---
samo matična s procesorom je 25km...




matična ploča Acer Aspire T671      HDMI
Matična ploča Acer Aspire T671 MS-7326 + utičnica-SOCKET  775 PCIe HDMI DDR2 VGA Aud * m842

Matična ploča ORIGINAL ACER + 2GB RAMA DDR2 + PROCESOR 3 GHZ
----


Acer Aspire T671 MS-7326 Utičnica za matičnu ploču i okvir 775 PCIe HDMI DDR2 VGA Audio

npr pogodan za Acer Aspire T671 ili identičan tj ORIGINAL ACER

Tehničke specifikacije

Aspire T671 Mainboard

CPU/Processor

Socket: 775

Supports the following processors:

Intel Core 2 Duo, up to 3.8GHz, 533/800/1066MHz system bus
Intel Pentium D, up to 3.6GHz, 533/800MHz system bus
Intel Pentium 4, up to 3.8GHz, 533/800MHz system bus
Intel Celeron D, up to 3.2GHz, 400/533MHz system bus

Chipset

North bridge: ATI RS600L (unlock)

South bridge: ATI SB600

Super I/O: ITE8718

Form factor

microATX ca. 244 mm x 244 mm

Memory

Dual Channel DDR2 800/667/533/400, Unbuffered DIMM

Support 4x DDRII DIMM (8 GB Maximum capacity)

Dual channel function enabled when plugging in two same memory size DDR2 memory modules

Steckplätze

1x PCI Express® X16 Slot, 1x PCI Express® X1 Slot, 2x PCI Slot

Video graphics

ATI RS600 on-die graphic solution (ATI Radeon)

ATI AVIVO technology support

Multiple display features support

One D-Sub VGA port on the rear side + One HDMI port on the rear side

SDVO interface which supports hot plug detection

Onboard audio

Realtek HD audio codec ALC888 HD codec 7.1 channels

Six audio jack on the rear side of the unit, compliant to Realtek HD audio definition

One 2*5 front audio header

One S/PDIF-out header (1*4)

One CD-In header

S/N ratio: 90 dB for the rear output jack

Onboard LAN

Marvell 88E8056, Gb PHY featuring

Floppy Disk Drive

One slot, 1.44MB/3 mode 3.5" devices support

SATA Interface + IDE

Four SATA ports. Compliant to SATA 2.0 specification

1 x IDE Port for 2 IDE devices. IDE/ RAID/ AHCI mode support RAID 0, 1, 10 support HDD/ CD-ROM/ CD-RW/ DVD-ROM/ DVD-RW/ DVD+RW/ DVD Dual/ DVD Super Multi Plus support

USB

10 x USB2.0/1.1(Rear 4 ports, Front 6ports)

Five OHCI and one EHCI host controllers to support ten ports

Three 2*5 onboard headers

Four ports for front daughter board

Two ports for internal USB card reader + IR module

Compliant to standard Intel FPIO pin definition

1394a

1x back panel and 1x via 1394 header (TSB43AB23PDTG4 2-port)

Buzzer

One onboard buzzer

CIR & IR Blaster

Compliant to ITE's pin definition to support CIR & IR blaster function for Vista home premium SKU

Power-up feature support

Back panel I/O

One PS/2 keyboard (purple)

One PS/2 mouse (green)

One LPT port

One VGA out port

One HDMI port

Four USB (2.0)

One IEEE 1394a port

One RJ-45 networking port (LAN)

Audio ports:

line in (light blue)

line out (lime)

microphone (pink)

side speaker out (gray)

rear speaker out (black)

center/subwoofer (yellow orange)

Internal connectors

One IDE connector

One floppy drive connector

One ATX 24-pin power connector

One ATX 4-pin +12v power connector

Four Serial ATA connectors

One IEEE 1394a connector

One 4-pin CPU fan connector

One 3-pin PC fan connector

One serial connector

One front audio connector

One CD-IN connector

One Front Panel connector

Three USB connectors supporting 2.0 ports

Matična ploča ORIGINAL ACER + 2GB RAMA DDR2 + PROCESOR 3 GHZ
-------

Matična ploča original acer DDR2 + 2GB RAMA + procesor
