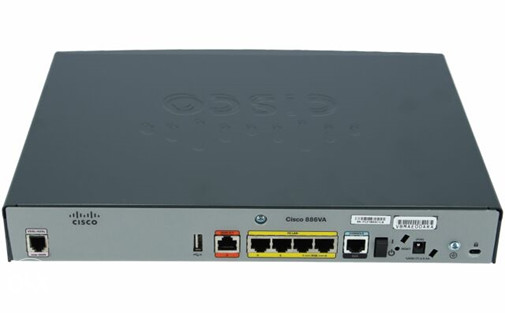

Router Cisco C886VA-K9 V01

REFUBRISHED !

Router Cisco C886VA-K9 V01

evice Type Router - 4-port switch (integrated)
Enclosure Type Desktop
Connectivity Technology Wireless, wired
Data Link Protocol Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n (draft 2.0)
Frequency Band 2.4 GHz
Capacity Concurrent IPSec tunnels: 20
Maximum number of configured SSIDs: 16
Wireless VLANs: 8
Network / Transport Protocol L2TP, RSVP, IPSec, PPPoE, PPPoA, FTP, DHCP, DNS, L2TPv3, RTP
Routing Protocol OSPF, RIP-1, RIP-2, BGP, EIGRP, HSRP, VRRP, NHRP, IGMPv3, GRE, policy-based routing (PBR), WCCP, Bidirectional Forwarding Detection (BFD)
Remote Management Protocol Telnet, SNMP 3, HTTP, HTTPS, SSH, CLI
Encryption Algorithm LEAP, DES, Triple DES, SSL, PEAP, TKIP, WPA, WPA2, PKI, 128-bit AES, 192-bit AES, 256-bit AES, WEP
Authentication Method RADIUS, TACACS+, Extensible Authentication Protocol (EAP)
Features Firewall protection, NAT support, MDI/MDI-X switch, power over Ethernet (PoE), VLAN support, content filtering, DiffServ support, manageable, MAC address filtering, Broadcast Storm Control, IPv6 support, Intrusion Prevention System (IPS), URL filtering, Stateful Failover, Low-latency queuing (LLQ), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Fair Queuing (WFQ), Weighted Random Early Detection (WRED), MIMO technology, Virtual Route Redundancy Protocol (VRRP) support, WLAN controller mode, Asynchronous Transfer Mode (ATM), Wi-Fi Multimedia (WMM) support, Access Control List (ACL) support, Quality of Service (QoS), Link Fragmentation and Interleaving (LFI), Dynamic Multipoint VPN (DMVPN), DHCP server, DNS proxy, wireless bridge mode, Bidirectional Forwarding Detection (BFD), DHCP relay, Port Security, 2T3R MIMO technology, DHCP client, Hot Standby Router Protocol (HSRP) support, Virtual Routing and Forwarding (VRF), Ingress Layer 2 MAC Access Control Lists (ACLs), VPN Server, Call Admission Control (CAC), Generic Routing Encapsulation (GRE), DiffServ Code Point (DSCP) support
Compliant Standards IEEE 802.1D, IEEE 802.1Q, ANSI T1.413, IEEE 802.11b, IEEE 802.3af, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.3ah, Wi-Fi CERTIFIED, IEEE 802.11n (draft 2.0), CISPR 24, EN55022, CISPR 22, EN50082-1, EN55022 Class B, EN 60555-2, FCC CFR47 Part 15, FCC CFR47 Part 15 B, VCCI V-3, IPv6 Ready, EN 61000-3-2:2000, EN 61000-3.3:1995 + A1:2001, KN22, EN 300386, EN55024:1998 + A1 + A2, EN 50082-1:1997
RAM 256 MB
Flash Memory 256 MB
Status Indicators Port status
Line Properties
Framing Format ANSI T1.413
Communications
Type ISDN / DSL modem combo
Digital Signaling Protocol ADSL2+ over ISDN, VDSL2 over ISDN
Protocols & Specifications ITU G.991.2 (G.shdsl), ITU G.994.1 (G.hs), ITU G.992.3 (G.DMT.bis), ITU G.992.5, ITU G.992.1 (G.DMT) Annex A, ITU G.992.1 (G.DMT) Annex B, ITU G.992.5 Annex M, ITU G.993.2, ITU G.992.3 Annex M
Expansion / Connectivity
Interfaces LAN: 2 x 10Base-T/100Base-TX - RJ-45
LAN: 2 x 10Base-T/100Base-TX (PoE) - RJ-45
WAN: 1 x ADSL2+ over ISDN
USB: 1 x 4 pin USB Type A
WAN: 1 x BRI ST
Management: 1 x console - RJ-45
Power
Power Device External power adapter - 60 Watt
Voltage Required AC 120/230 V (50/60 Hz)
Software / System Requirements
OS Provided Cisco IOS Advanced IP services
Dimensions & Weight
Width 32.5 cm
Depth 26.4 cm
Height 4.4 cm
Weight 2.5 kg
Environmental Parameters
Min Operating Temperature 0 °C
Max Operating Temperature 40 °C
Humidity Range Operating 10 - 85% (non-condensing)
