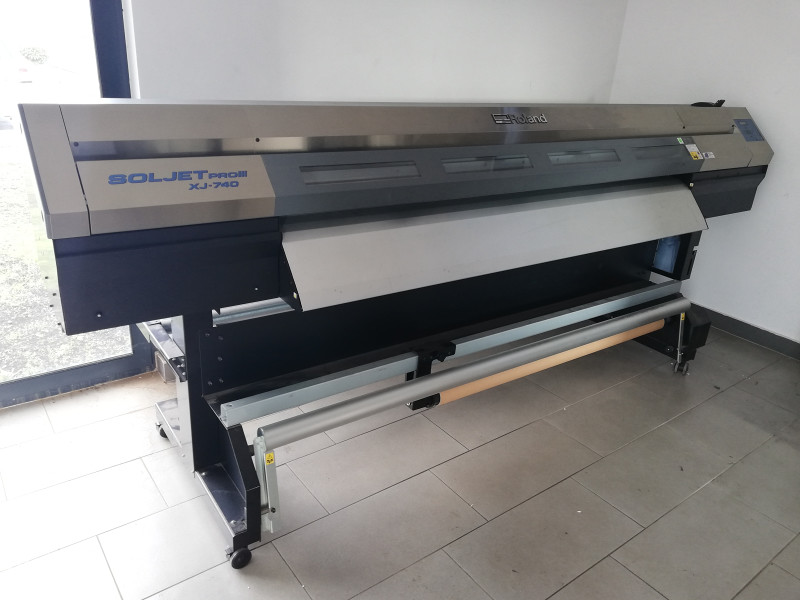

Roland SOLJET Pro III XJ-740 printer

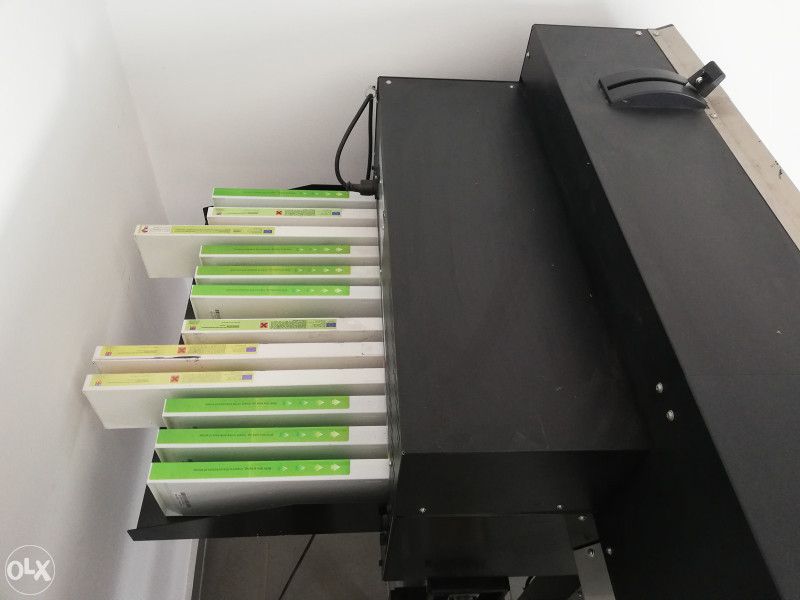

Model XJ-740 XJ-640 Printing technology Piezoelectric inkjet Media Width 210 to 1879 mm (8.3 to 74 in.) 210 to 1625 mm (8.3 to 64 in.) Thickness Maximum 1.0 mm (39 mil) with liner Roll outer diameter Maximum 210 mm (8.3 in.) Roll weight Maximum 47 kg (103 lb.) Maximum 40 kg (88 lb.) Core diameter 76.2 mm (3 in.) or 50.8 mm (2 in.) Printing width Maximum 1869 mm (73.6 in.)*1 Maximum 1615 mm (63.6 in.)*1 Ink cartridges Types Exclusive Roland ECO-SOL MAX cartridge Capacity 220 cc or 440 cc Colors 6 colors (cyan, magenta, yellow, black, light cyan, and light magenta) or

4 colors (cyan, magenta, yellow, and black)

Printing resolution (dots per inch) Maximum 1440 dpi Distance accuracy Error of less than ±0.3 % of distance traveled, or ±0.3 mm, whichever is greater*2 Media heating system Preheater and print heater, setting range for the preset temperature:
30 to 50°C (86 to 122°F)

Dryer, setting range for the preset temperature: 30 to 55°C (86 to 130°F)

Media take-up system Roll outer diameter Maximum 250 mm (9.8 in.) Roll weight Maximum 50 kg (110 lb.) Connectivity Ethernet (10BASE-T/100BASE-TX, automatic switching) Power-saving function Automatic sleep Power requirements AC 100 to 120 V ±10 %, 13 A, 50/60 Hz or
AC 220 to 240 V ±10 %, 7 A, 50/60 Hz Power consumption During operation Approx. 1600 W Sleep mode Approx. 47 W Acoustic noise level During operation 64 dB (A) or less During standby 45 dB (A) or less Dimensions (with stand) 3169 (W) x 1103 (D) x 1260 (H) mm

(124.8 (W) x 43.4 (D) x 49.6 (H) in.)

2948 (W) x 1103 (D) x 1260 (H) mm

(116 (W) x 43.4 (D) x 49.6 (H) in.)

Weight (with stand) 225 kg (495 lb.) 213 kg (469 lb.) Environmental Power on Temperature: 15 to 32°C (59 to 90°F) (20°C [68°F] or more recommended),

humidity: 35 to 80 %RH (non-condensing)

Power off Temperature: 5 to 40°C (41 to 104°F), humidity: 20 to 80 %RH (non-condensing) Accessories Stand, power cord, media clamps, media flanges, replacement blade

for separating knife, cleaning kit, software RIP, and User’s Manual, etc.

*1 The length of printing is subject to the limitations of the program.
