ENKODER OMRON E6B2-CWZ6C 50 IMPULSA

160 KM

Oglas nije mijenjao cijenu

Tehnika Mjerno-regulacioni instrumenti Ispravljači/Pretvarači

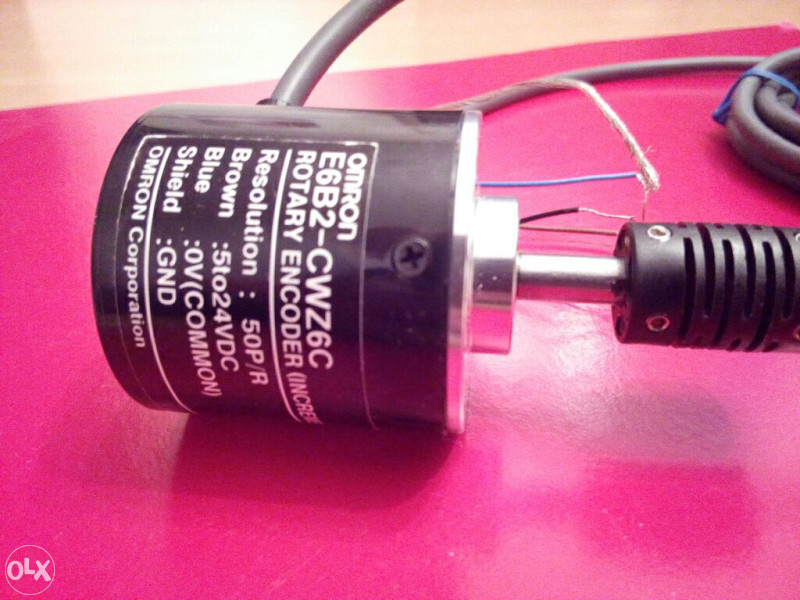

ENKODER OMRON E6B2-CWZ6C 50 IMPULSA
ENKODER OMRON E6B2-CWZ6C 50 IMPULSA
ENKODER OMRON E6B2-CWZ6C 50 IMPULSA
ENKODER OMRON E6B2-CWZ6C 50 IMPULSA
ENKODER OMRON E6B2-CWZ6C 50 IMPULSA
gallery images

3

Tehnika Mjerno-regulacioni instrumenti Ispravljači/Pretvarači

Ovaj oglas može biti na Vašim vratima u roku od 24 sata

Detaljni opis

Item Description:

Resolution: 50 p/r
Power source: 5-24 VDC
Shaft: 6mm Dia, 12mm Length
Size: 39mm Dia, 38mm Length
Output : A B Z 3 phase output rectangular orthogonal pulse circuit,
the output for the NPN open collector output type
Maximum mechanical speed: 6000 R / min
response frequency: 0-100KHz
Cable length: 1.2 meter 4-core shielded cable
package :1pc

notice :

Vcc: + power, V0: ground ,Connection color is clearly marked on nameplate ,

A B Z 3 phase output must not be directly connected with VCC, otherwise,

will burn the output triode.
