General informationType
CPU / MicroprocessorMarket segmentDesktopFamily
AMD Athlon 64 X2Model number
? 4200+CPU part numbers

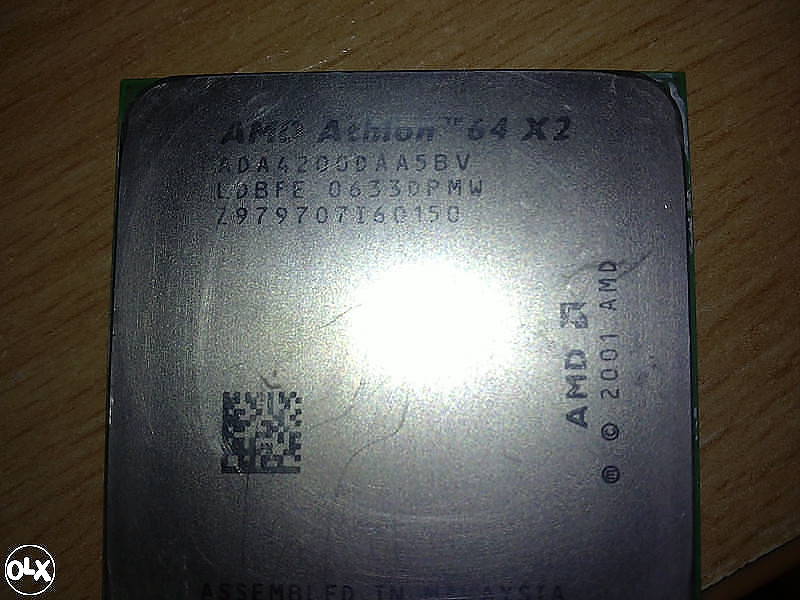

- ADA4200DAA5BV is an OEM/tray microprocessor
- ADA4200BVBOX is a boxed microprocessor with fan and heatsink
Stepping codes
ADBHE CDBFE CDBHE LDBFE LDBHEFrequency ? 4200+ (rated)
2200 MHz (real)Clock multiplier ? 11Package939-pin lidded organic microPGAAMD Package number28730
SocketSocket 939Size1.57" x 1.57" / 4cm x 4cmIntroduction date
May 31, 2005Price at introduction$537
Architecture / MicroarchitectureMicroarchitectureK8Processor core
? ManchesterCore stepping
? E4CPUID20FB1Manufacturing process0.09 micron
150 million transistors
Data width64 bitThe number of CPU cores2The number of threads2Floating Point UnitIntegratedLevel 1 cache size
? 2 x 64 KB 2-way set associative instruction caches
2 x 64 KB 2-way set associative data caches
Level 2 cache size ? 2 x 512 KB exclusive 16-way set associative cachesPhysical memory1 TBVirtual memory256 TBMultiprocessingUniprocessorFeatures
- MMX instructions
- 3DNow! technology
- SSE / Streaming SIMD Extensions
- SSE2 / Streaming SIMD Extensions 2
- SSE3 / Streaming SIMD Extensions 3
- AMD64 / AMD 64-bit technology ?
- EVP / Enhanced Virus Protection ?
Low power features
- Halt state
- Stop Grant state ?
- Cool'n'Quiet technology
Integrated peripherals / componentsIntegrated graphicsNoneMemory controllerThe number of controllers: 1
Memory channels: 2
Supported memory: DDROther peripheralsHyperTransport link
Electrical / Thermal parametersV core
? 1.3V / 1.35VMaximum operating temperature
? 49°C - 71°C
Thermal Design Power ? 89 WattNotes on AMD Athlon 64 X2 4200+ (Socket 939, rev. E4)- In the minimum performance state (P-state) the processor runs at 1000 MHz and 1.1 Volt core voltage. Thermal Design Power in the minimum P-state is 37.6 Watt
