DIGITALNI TERMOSTAT RKC REX C100 IZLAZ ZA SOLID STATE

Na upit

Oglas nije mijenjao cijenu

gallery images

5

Detaljni opis

Specification:

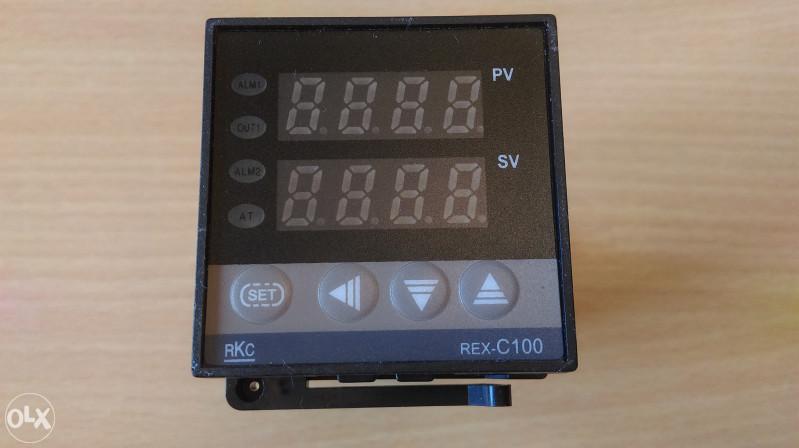

REX-C100 Temperature Controller:

  • Measuring accuracy: ±0.5%FS

  • Cold-end compensation tolerance: ±2℃ (can be modified by software in 0~50℃)

  • Resolution: 14 bit

  • Sampling cycle: 0.5 Sec

  • Power: AC 100-240V 50/60HZ

  • Process value (PV), Setting value (SV)

  • Output, and self-tuning can be indicated by:LED

  • PIN control (including ON/OFF, step-type PID and continuous PID)

  • Self-tuning control

  • Relay output: contact capacity 250V AC 3A (resistive load)

  • Proportional band (P): 0~full range (ON/OFF control when set to 0)

  • Detective temperature range: 0 to 400℃

  • Insulation resistance: >50M ohm(500V DC)

  • Insulation resistance: 1500V AC/min

  • Insulation resistance: Power Consumption < 10 VA

  • Service environment: 0~50℃

  • environment with no corrosive gas 30~85% RH
