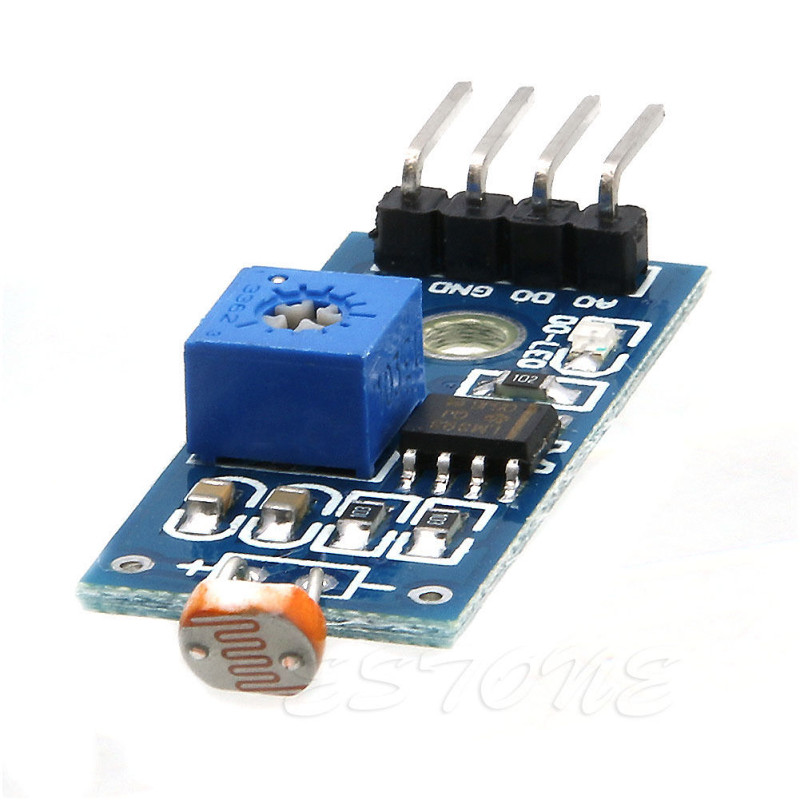

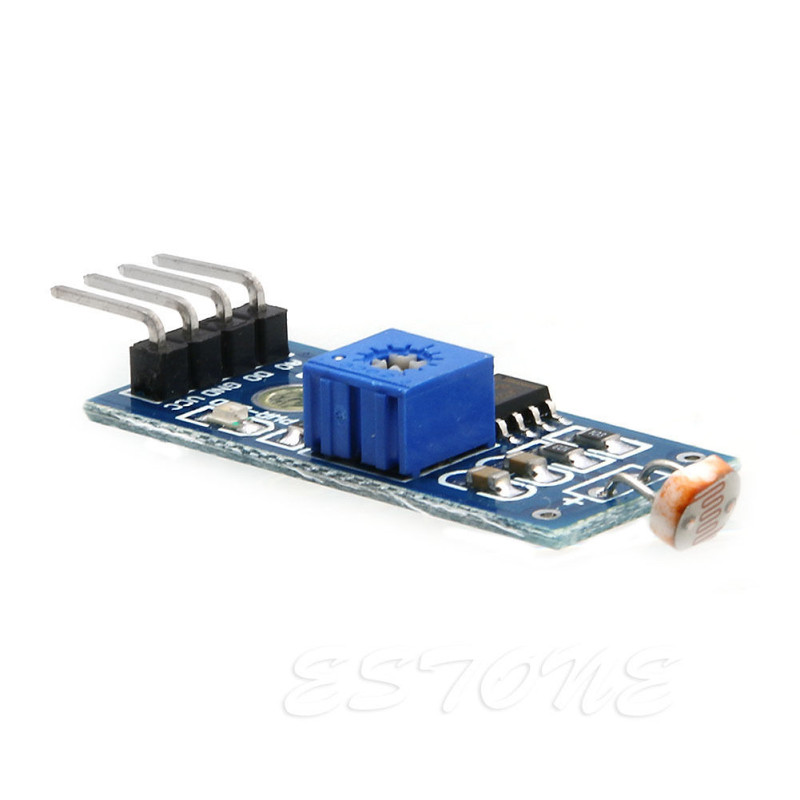

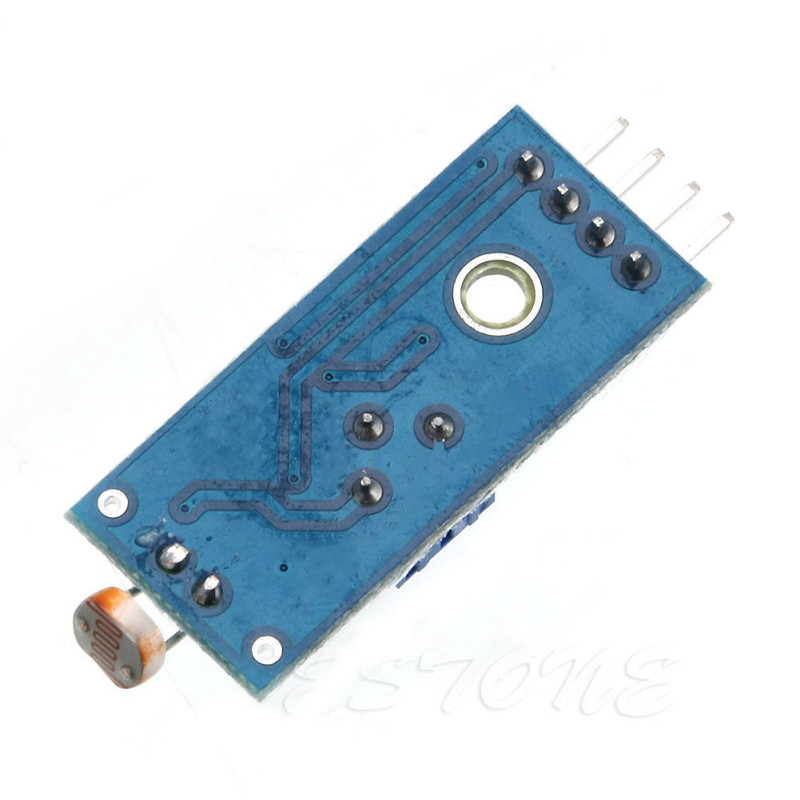

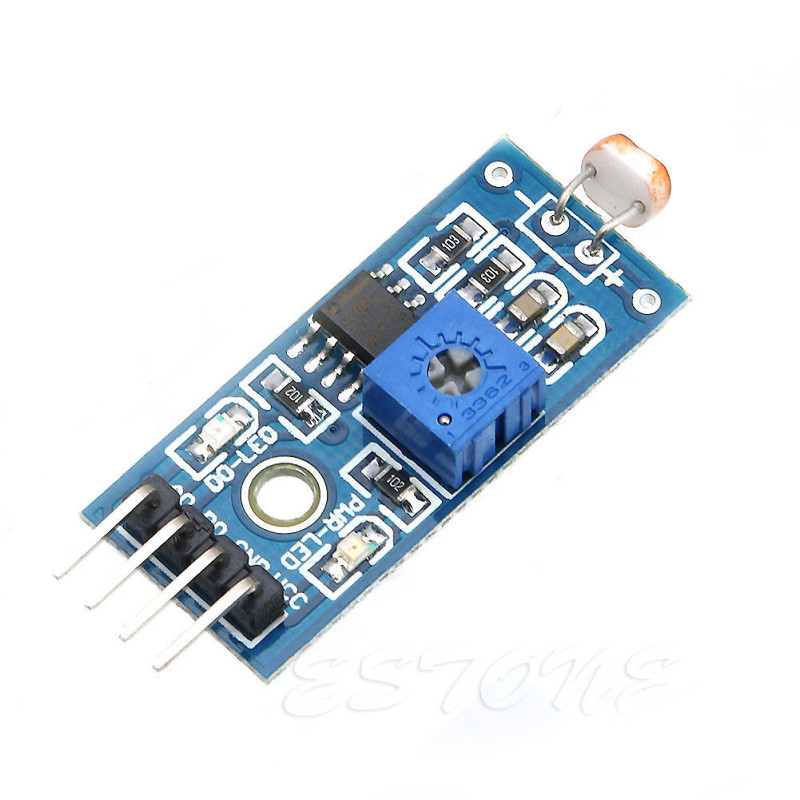

Digital light intensity sensor for arduino

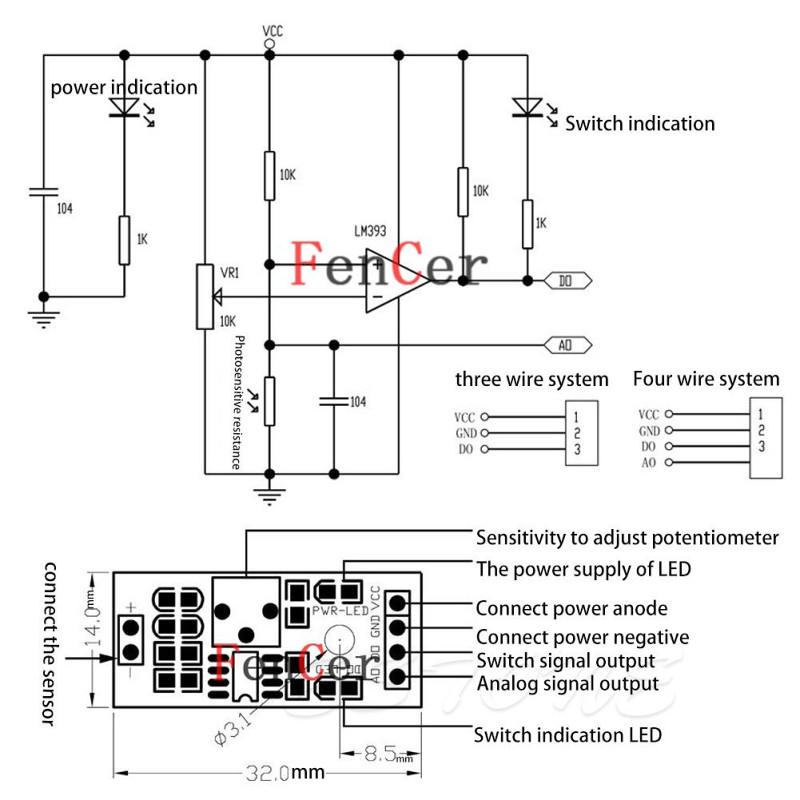

<p><font size="2" face="Verdana">    <strong> Feature:</strong></font></p> <ul> <li><font size="2" face="Verdana">Using the sensitive type photosensitive resistance sensor</font></li> <li><font size="2" face="Verdana">The comparator output signal clean waveform is good, driving ability, than 15mA.</font></li> <li><font size="2" face="Verdana">With adjustable potentiometer can adjust the brightness of the light detected</font></li> <li><font size="2" face="Verdana">Working voltage 3.3V-5V</font></li> <li><font size="2" face="Verdana">The output format: Digital switching output (0 and 1)</font></li> <li><font size="2" face="Verdana">With bolt holes for easy installation</font></li> <li><font size="2" face="Verdana">A small board PCB size: (L*W)3.20 x 1.40cm/1.26"*0.55"</font></li> <li><font size="2" face="Verdana">Using a wide voltage LM393 comparator</font></li> <li><font size="2" face="Verdana">Quality：1pc</font></li> </ul> <p><font size="2" face="Verdana">    <strong>   Product connection details:</strong></font></p> <ul> <li><font size="2" face="Verdana">VCC connect the power positive 3.3-5 v</font></li> <li><font size="2" face="Verdana">GND connect power cathode</font></li> <li><font size="2" face="Verdana">DO TTL switch signal output</font></li> <li><font size="2" face="Verdana">AO analog signal output</font></li> </ul> <p> </p> <p>Stanje: Novo, neotpakovano.</p> <p>Vrijeme isporuke: Odmah nakon dogovora o uplati.</p> <p>Na stanju više komada.</p> <p>Kontakt <strong>telefon/Viber</strong> broj: 062/753-410</p> <p> </p> <p>POGLEDAJTE OSTALE ARTIKLE...</p> <p>DaRKi - <a href="profil/DaRKi"><u>http://www.olx.ba/profil/DaRKi</u></a></p>
