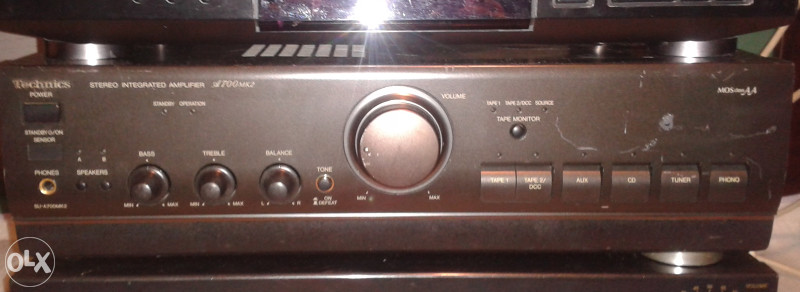

POJAČALO STEREO TECHNICS SU A700MK2

POJAČALO TEHNIKS MODEL SU A700 MK2

General

• Years of manufacture: 1995/97
• Made in: Japan
• Color: Black
• Type: Analog
• Remote control: yes
• Power consumption: 200 watts
• Dimensions: 430 x 125 x 318mm (WxHxD)
• Weight: 7kg
• Original price approx.: 650,00 DM

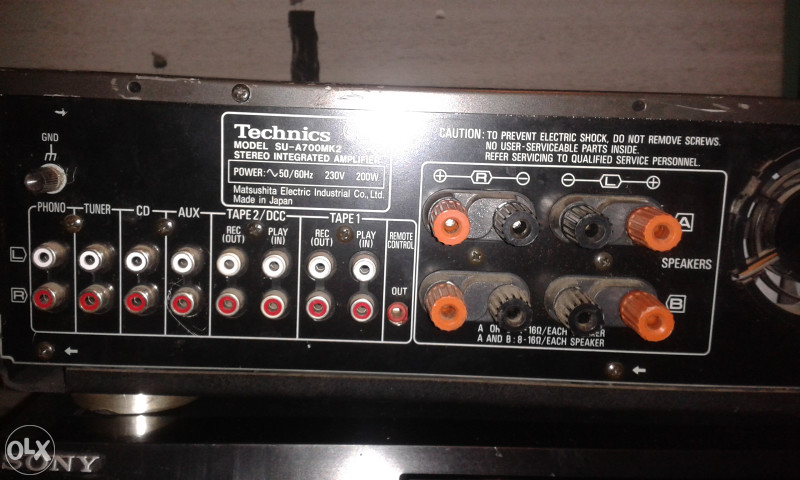

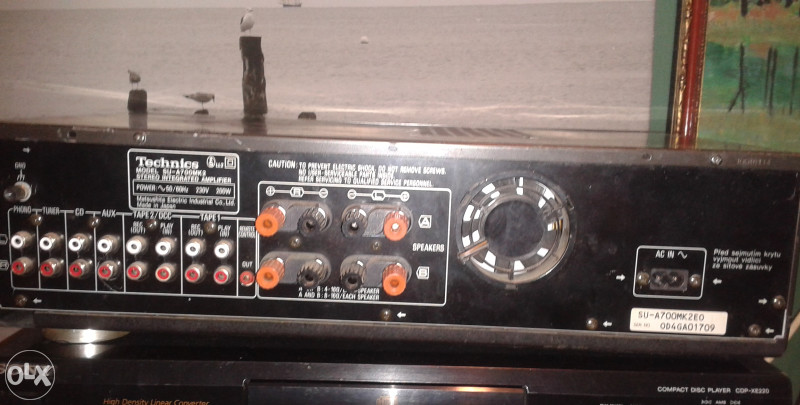

Connections

• Number of inputs:
• Phono MM/MC (2.5mV, 47 kOhm / 170μV, 220 Ohm).
• AUX (150mV, 22 kOhm)

Tuner (150mV, 22 kOhm) CD (150mV, 22 kOhm)

• Tape1/Tape2 (150mV, 22 kOhm).
• Number of outputs:
• Tape1
• Tape2

Technical Data

• Sine output power: 2 x 80 W (4Ohm)
• Total harmonic distortion: 0,01 %
• Frequency response: 3Hz - 80 kHz; -0 dB, -3 dB
• Spurious voltage spacing: 99 dB

Special Features

• with Mos Class AA circuit for the power amplifier
• Tape Monitor, switchable
• Direct-Sound (circuit)
• 2 pairs of speakers connectable
• Speaker selector switch (A and/or B) THCB
• best linearity for audibly better sound
• excellent performance thanks to MOS-FET transistors
• high current flow with low power loss
• resonance-damping double-layer base made of metal chassis and TNRC special material
• MASTER series capacitors for high sound quality
• 6-position input selector switch (CD, Tape 1, Tape 2, Tuner, Phono, AUX)
• low-noise NFB tone controls with bypass switch
